Novametrix SPO2 Finger Sensor / Professional Pulse Oximeter Probe 5547-32-10

I'm Online Chat Now

Novametrix SPO2 Finger Sensor / Professional Pulse Oximeter Probe 5547-32-10

China Novametrix SPO2 Finger Sensor / Professional Pulse Oximeter Probe 5547-32-10 supplier
Novametrix SPO2 Finger Sensor / Professional Pulse Oximeter Probe 5547-32-10 supplier Novametrix SPO2 Finger Sensor / Professional Pulse Oximeter Probe 5547-32-10 supplier

Large Image :  Novametrix SPO2 Finger Sensor / Professional Pulse Oximeter Probe 5547-32-10

Product Details:

Place of Origin: China
Brand Name: Novametrix
Certification: CE
Model Number: Novametrix :505, 510,511,515B/C, 520

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 10*7*3(CM)/pc
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
Material: TUP/PVC - Latex - Free Function: Dressings And Care For Material
Style: Clip, Softwrap Color: Grey, White And Blue
Connector: Round 10pin Warranty: 12 Months
High Light:

finger clip oxygen sensor

,

spo2 probe sensor

Detailed Product Description




Suitable for Novametrix :505, 510,511,515B/C, 520,
7000, 7100, Oxypleth ; Spacelabs
Medical:90351-D/G , 90465, , 90466, 90467, 90489,
90651-07/08 , 90419-01, 90651A-07
(direct connect)

Novametrix:505,510,511,515B/C,520,7000, 7100, Oxypleth ;original
match :8776-00,Spacelabs:90351-D/G ,90465,90466, 90467, 90489,
90651-07/08 ,90419-01, 90651A-07

Original Part No.:
5547-32-10

http://www.spo2-ecg.com



OEM P/N Part No. Description(Cable & Connector)
8776-00 NMJ0001 Adult finger clip, 12ft blue cable & Hypertronics 7-Pin
  NMJ0002 Pediatric finger clip, 12ft blue cable & Hypertronics 7-Pin
  NMJ0003 Adult silicone soft tip, 12ft blue cable & Hypertronics 7-Pin
  NMJ0004 Pediatric silicone soft tip, 12ft blue cable & Hypertronics 7-Pin
  NMJ0005 Neonate silicone Wrap, 12ft blue cable & Hypertronics 7-Pin
  NMJ0006 Adult ear clip spo2 sensor ,Hypertronics with 7-pins, 12ft
Novametrix SPO2 Finger Sensor / Professional Pulse Oximeter Probe 5547-32-10 Novametrix SPO2 Finger Sensor / Professional Pulse Oximeter Probe 5547-32-10



TECHNICAL PARAMETERS:

LEDS Red 660nm normal
Infrared 880 / 905 / 940nm normal
Test Range Oxygen Saturation(%SpO2) 0 % to 100 %
Pulse Rate(bpm) 30 to 245
Accuracy SpO2 ± 2%(90% -1 00 %)
±3%(70%-89 %)
unspecified(0-69 %)
Pulse Rate ±1 bpm(30 - 59bpm)
±2 bpm(60 - 149bmp)
±3 bpm(150 - 245bmp)
Storage and Transport Environment - 10°C~ + 40°C
Operating Temperature + 5°C~ + 40°C
Operating/Storage/Transportation humidity 0% - 80%
Hyperbaric pressure 86kPa - 106 kPa



Products more details

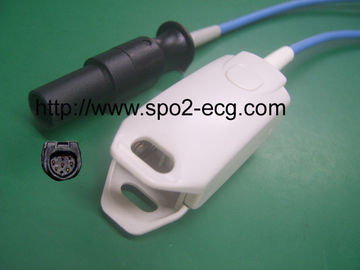

1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers, the hard plastic shell for fixed sensors is larger and fits adult measurement, the instruments of different brand its probe shell may be slightly different, different shell shape cannot influence the performance of product.
2. Pediatric finger clip type spo2 sensor
Such blood oxygen probes, sensors in children's fingers acquisition signal, the hard plastic shell used in fixed sensor is smaller and measurements are suitable for children.
3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip
Such blood oxygen probe, sensor covered on adult finger to collect signals, the soft gel coat used in fixed sensors is bigger, suitable for adults. Different brands of instruments and its probe coat may be slightly different, different shape of coat cannot influence the product performance.
4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.
The type of blood oxygen sensor, the sensor wrapped in neonatal acquisition signals on his foot, fixed sensors used in soft gel coat is bind package type, suitable for newborns.



Novametrix SPO2 Finger Sensor / Professional Pulse Oximeter Probe 5547-32-10 Novametrix SPO2 Finger Sensor / Professional Pulse Oximeter Probe 5547-32-10
