NONIN: 8500,8600,8700,8800,8604,8604D-spo2 sensor, DB9M 7pin, Gray / Bule cable

I'm Online Chat Now

NONIN: 8500,8600,8700,8800,8604,8604D-spo2 sensor, DB9M 7pin, Gray / Bule cable

China NONIN: 8500,8600,8700,8800,8604,8604D-spo2 sensor, DB9M 7pin, Gray / Bule cable supplier
NONIN: 8500,8600,8700,8800,8604,8604D-spo2 sensor, DB9M 7pin, Gray / Bule cable supplier NONIN: 8500,8600,8700,8800,8604,8604D-spo2 sensor, DB9M 7pin, Gray / Bule cable supplier

Large Image :  NONIN: 8500,8600,8700,8800,8604,8604D-spo2 sensor, DB9M 7pin, Gray / Bule cable

Product Details:

Place of Origin: China
Brand Name: Novametrix
Certification: CE
Model Number: Novametrix :505, 510,511,515B/C, 520

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 10*7*3(CM)/pc
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
Material: TUP/PVC - Latex - Free Function: Dressings And Care For Material
Style: Clip, Softwrap Color: Grey, White And Blue
Connector: DB9M 7pin, Warranty: 12 Months

Compatible Model NO. :

NONIN: 8500,8600,8700,8800
NONIN: 2500, 8500, PamSAT 2500, Avant 9600, Avant 9700, Avant 2120, 9840

Specifications:


  • Safety: IEC 60601-1-1 approved, conformity with MDD 93/42/EEC and EN9919:2005
  • Patient sizes: Pediatric
  • Ambient temperature: 0 to 40°C(32 to 104°F)
  • Relative humidity: 15% to 95%
  • Measurement technology: Tri-wavelength LEDs & photo detector
  • LED wavelength: 660nm/880nm/940nm
  • SpO2 accuracy: ±3 (70-100%); Unspecified (0-69%)
  • Pulse rate range: 20-250bpm
  • Pulse rate accuracy: ±3 (20-250bpm)
  • Packages: non-sterilization, individual package with instruction

http://www.spo2-ecg.com



OEM P/NPart No.Description(Cable & Connector)
8000AANNJ0001Adult finger clip, 3ft blue cable & DB9M 7pin
8000APNNJ0002Pediatric finger clip, 3ft blue cable & DB9M 7pin
8000AANNJ0003Adult silicone soft tip, 3ft blue cable & DB9M 7pin
8000APNNJ0004Pediatric silicone soft tip, 3ft blue cable & DB9M 7pin
 NNJ0005Neonate silicone Wrap, 3ft blue cable & DB9M 7pin
 NNJ0006Adult ear clip spo2 sensor ,DB9M with 7-pins,3ft
NONIN: 8500,8600,8700,8800,8604,8604D-spo2 sensor, DB9M 7pin, Gray / Bule cableNONIN: 8500,8600,8700,8800,8604,8604D-spo2 sensor, DB9M 7pin, Gray / Bule cable


TECHNICAL PARAMETERS:

LEDSRed660nm normal
Infrared880 / 905 / 940nm normal
Test RangeOxygen Saturation(%SpO2)0 % to 100 %
Pulse Rate(bpm)30 to 245
AccuracySpO2± 2%(90% -1 00 %)
±3%(70%-89 %)
unspecified(0-69 %)
Pulse Rate±1 bpm(30 - 59bpm)
±2 bpm(60 - 149bmp)
±3 bpm(150 - 245bmp)
Storage and Transport Environment- 10°C~ + 40°C
Operating Temperature+ 5°C~ + 40°C
Operating/Storage/Transportation humidity0% - 80%
Hyperbaric pressure86kPa - 106 kPa

Products more details

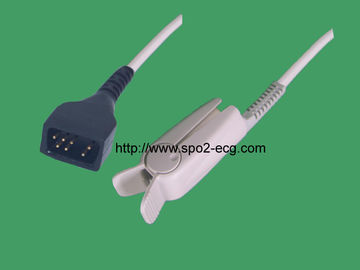

1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers, the hard plastic shell for fixed sensors is larger and fits adult measurement, the instruments of different brand its probe shell may be slightly different, different shell shape cannot influence the performance of product.
2. Pediatric finger clip type spo2 sensor
Such blood oxygen probes, sensors in children's fingers acquisition signal, the hard plastic shell used in fixed sensor is smaller and measurements are suitable for children.

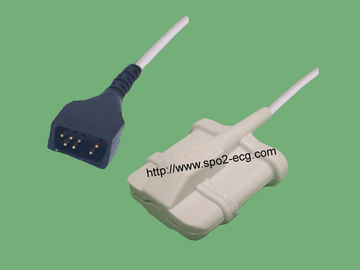

3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip
Such blood oxygen probe, sensor covered on adult finger to collect signals, the soft gel coat used in fixed sensors is bigger, suitable for adults. Different brands of instruments and its probe coat may be slightly different, different shape of coat cannot influence the product performance.
4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.
The type of blood oxygen sensor, the sensor wrapped in neonatal acquisition signals on his foot, fixed sensors used in soft gel coat is bind package type, suitable for newborns.



NONIN: 8500,8600,8700,8800,8604,8604D-spo2 sensor, DB9M 7pin, Gray / Bule cableNONIN: 8500,8600,8700,8800,8604,8604D-spo2 sensor, DB9M 7pin, Gray / Bule cable



NONIN: 8500,8600,8700,8800,8604,8604D-spo2 sensor, DB9M 7pin, Gray / Bule cableNONIN: 8500,8600,8700,8800,8604,8604D-spo2 sensor, DB9M 7pin, Gray / Bule cableNONIN: 8500,8600,8700,8800,8604,8604D-spo2 sensor, DB9M 7pin, Gray / Bule cableNONIN: 8500,8600,8700,8800,8604,8604D-spo2 sensor, DB9M 7pin, Gray / Bule cableNONIN: 8500,8600,8700,8800,8604,8604D-spo2 sensor, DB9M 7pin, Gray / Bule cable
