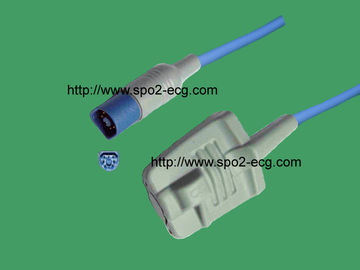

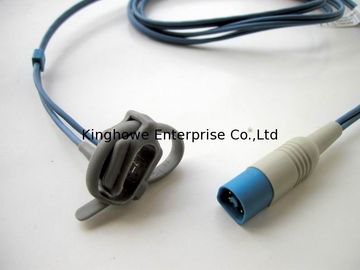

Philips/HP M1190A, M1191A, M1192A, M1193A -spo2 sensor,HP 8Pin grap / Bule, Adult finger clip

I'm Online Chat Now

Philips/HP M1190A, M1191A, M1192A, M1193A -spo2 sensor,HP 8Pin grap / Bule, Adult finger clip

China Philips/HP M1190A, M1191A, M1192A, M1193A -spo2 sensor,HP 8Pin grap / Bule, Adult finger clip supplier
Philips/HP M1190A, M1191A, M1192A, M1193A -spo2 sensor,HP 8Pin grap / Bule, Adult finger clip supplier Philips/HP M1190A, M1191A, M1192A, M1193A -spo2 sensor,HP 8Pin grap / Bule, Adult finger clip supplier

Large Image :  Philips/HP M1190A, M1191A, M1192A, M1193A -spo2 sensor,HP 8Pin grap / Bule, Adult finger clip

Product Details:

Place of Origin: China
Brand Name: Philips/HP
Certification: CE
Model Number: Philips/HP M1190A, M1191A, M1192A, M1193A

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 10*7*3(CM)/pc
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
Material: TUP/PVC - Latex - Free Function: Dressings And Care For Material
Style: Clip, Softwrap Color: Grey, White And Blue
Connector: HP 8Pin Warranty: 12 Months

Detailed Product Description



Suitable for Philips
Medical:M3,M4,MP20,MP30,MP40,MP50,MP70,MP80,VM4,VM6,VM8
Philips/HP M1190A, M1191A, M1192A, M1193A

Features:

Double shield structures

Copper Alloy, Additional tensile

Improve the anti-interference performance

Assure the signal accurate

Excellent Bio-compatible

The Emitter and Receiver: import sensors. The wavelength could be got to +/-1%, ensure the accuracy of the measurement.

http://www.spo2-ecg.com



OEM P/NPart No.Description(Cable & Connector)
 PJ0001AAdult finger clip, 12ft blue/gray cable, HP 8-Pin
 PJ0002APediatric finger clip, 12ft blue/gray cable, HP 8-Pin
M1191APJ0003AAdult silicone soft tip, HP 8-Pin
M1192APJ0004APediatric silicone soft tip, HP 8-Pin
M1193APJ0005ANeonate silicone Wrap, 6ft HP 8-Pin
M1194APJ0006AAdult ear clip spo2 sensor ,6ft HP with 8-pins
Philips/HP M1190A, M1191A, M1192A, M1193A -spo2 sensor,HP 8Pin grap / Bule, Adult finger clipPhilips/HP M1190A, M1191A, M1192A, M1193A -spo2 sensor,HP 8Pin grap / Bule, Adult finger clip


TECHNICAL PARAMETERS:

LEDSRed660nm normal
Infrared880 / 905 / 940nm normal
Test RangeOxygen Saturation(%SpO2)0 % to 100 %
Pulse Rate(bpm)30 to 245
AccuracySpO2± 2%(90% -1 00 %)
±3%(70%-89 %)
unspecified(0-69 %)
Pulse Rate±1 bpm(30 - 59bpm)
±2 bpm(60 - 149bmp)
±3 bpm(150 - 245bmp)
Storage and Transport Environment- 10°C~ + 40°C
Operating Temperature+ 5°C~ + 40°C
Operating/Storage/Transportation humidity0% - 80%
Hyperbaric pressure86kPa - 106 kPa

Products more details
1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers, the hard plastic shell for fixed sensors is larger and fits adult measurement, the instruments of different brand its probe shell may be slightly different, different shell shape cannot influence the performance of product.
2. Pediatric finger clip type spo2 sensor
Such blood oxygen probes, sensors in children's fingers acquisition signal, the hard plastic shell used in fixed sensor is smaller and measurements are suitable for children.
3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip
Such blood oxygen probe, sensor covered on adult finger to collect signals, the soft gel coat used in fixed sensors is bigger, suitable for adults. Different brands of instruments and its probe coat may be slightly different, different shape of coat cannot influence the product performance.
4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.
The type of blood oxygen sensor, the sensor wrapped in neonatal acquisition signals on his foot, fixed sensors used in soft gel coat is bind package type, suitable for newborns.



Philips/HP M1190A, M1191A, M1192A, M1193A -spo2 sensor,HP 8Pin grap / Bule, Adult finger clipPhilips/HP M1190A, M1191A, M1192A, M1193A -spo2 sensor,HP 8Pin grap / Bule, Adult finger clip
Philips/HP M1190A, M1191A, M1192A, M1193A -spo2 sensor,HP 8Pin grap / Bule, Adult finger clip



Philips/HP M1190A, M1191A, M1192A, M1193A -spo2 sensor,HP 8Pin grap / Bule, Adult finger clipPhilips/HP M1190A, M1191A, M1192A, M1193A -spo2 sensor,HP 8Pin grap / Bule, Adult finger clipPhilips/HP M1190A, M1191A, M1192A, M1193A -spo2 sensor,HP 8Pin grap / Bule, Adult finger clipPhilips/HP M1190A, M1191A, M1192A, M1193A -spo2 sensor,HP 8Pin grap / Bule, Adult finger clipPhilips/HP M1190A, M1191A, M1192A, M1193A -spo2 sensor,HP 8Pin grap / Bule, Adult finger clip
