Silicone Tip SPO2 Finger Sensor Connects Directly For Adult And Child

I'm Online Chat Now

Silicone Tip SPO2 Finger Sensor Connects Directly For Adult And Child

China Silicone Tip SPO2 Finger Sensor Connects Directly For Adult And Child supplier
Silicone Tip SPO2 Finger Sensor Connects Directly For Adult And Child supplier Silicone Tip SPO2 Finger Sensor Connects Directly For Adult And Child supplier

Large Image :  Silicone Tip SPO2 Finger Sensor Connects Directly For Adult And Child

Product Details:

Place of Origin: China
Brand Name: Strong Medical
Certification: CE
Model Number: Strong Medical

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 10*7*3(CM)/pc
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
Material: TUP/PVC - Latex - Free Function: Dressings And Care For Material
Style: Clip, Softwrap Color: Grey, White And Blue
Connector: Round 5pin(2 Bit) Warranty: 12 Months

Detailed Product Description



Comen/Lanke/Maytag/CSI/strong spo2 sensor for adult and child


This sensor connects directly to the bedside monitor without an extension cable. It works with the following patient monitors:
COMEN:STAR-1000
LANKE:LK-8600A
MAYTAG :MTK-2000
CSI: RADO 4200
Strong:Prophet21


Cable Material: Medical-grade TPU
Tip Material: Silicone (flexible, soft, latex-free, and reliable)

Connector for the machine is made of the import plastic and it feels comfortable when you touch, there is no sensitization for patient skin surface.

Features:
Double shield structures
Copper Alloy, Additional tensile
Improve the anti-interference performance
Assure the signal accurate
Excellent Bio-compatible

The Emitter and Receiver: import sensors. The wavelength could be got to +/-1%, ensure the accuracy of the measurement.
http://www.spo2-ecg.com



OEM P/NPart No.Description(Cable & Connector)
 STJ001Adult finger clip, 12ft blue cable & connector redel 5-pin (2 bit).
 STJ002Pediatric finger clip, 12ft blue cable & connector redel 5-pin (2 bit).
 STJ003Adult silicone soft tip, 12ft blue cable & connector redel 5-pin (2 bit).
 STJ004Pediatric silicone soft tip, 12ft blue cable & connector redel 5-pin (2 bit).
 STJ005Neonate silicone Wrap, 12ft blue cable & connector redel 5-pin (2 bit).
 STJ006Adult ear clip spo2 sensor ,connector redel 5-pin (2 bit).
Silicone Tip SPO2 Finger Sensor Connects Directly For Adult And ChildSilicone Tip SPO2 Finger Sensor Connects Directly For Adult And Child


TECHNICAL PARAMETERS:

LEDSRed660nm normal
Infrared880 / 905 / 940nm normal
Test RangeOxygen Saturation(%SpO2)0 % to 100 %
Pulse Rate(bpm)30 to 245
AccuracySpO2± 2%(90% -1 00 %)
±3%(70%-89 %)
unspecified(0-69 %)
Pulse Rate±1 bpm(30 - 59bpm)
±2 bpm(60 - 149bmp)
±3 bpm(150 - 245bmp)
Storage and Transport Environment- 10°C~ + 40°C
Operating Temperature+ 5°C~ + 40°C
Operating/Storage/Transportation humidity0% - 80%
Hyperbaric pressure86kPa - 106 kPa

Products more details
1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers, the hard plastic shell for fixed sensors is larger and fits adult measurement, the instruments of different brand its probe shell may be slightly different, different shell shape cannot influence the performance of product.
2. Pediatric finger clip type spo2 sensor
Such blood oxygen probes, sensors in children's fingers acquisition signal, the hard plastic shell used in fixed sensor is smaller and measurements are suitable for children.

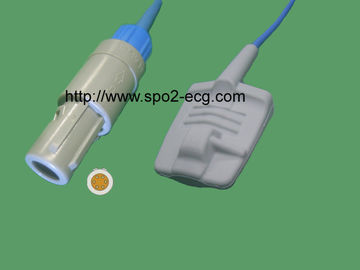

3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip
Such blood oxygen probe, sensor covered on adult finger to collect signals, the soft gel coat used in fixed sensors is bigger, suitable for adults. Different brands of instruments and its probe coat may be slightly different, different shape of coat cannot influence the product performance.
4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.
The type of blood oxygen sensor, the sensor wrapped in neonatal acquisition signals on his foot, fixed sensors used in soft gel coat is bind package type, suitable for newborns.



Silicone Tip SPO2 Finger Sensor Connects Directly For Adult And ChildSilicone Tip SPO2 Finger Sensor Connects Directly For Adult And Child
