Profesiional Compatible Finger Clip Sensor Redel 6 Pin For Medical Monitor

I'm Online Chat Now

Profesiional Compatible Finger Clip Sensor Redel 6 Pin For Medical Monitor

China Profesiional Compatible Finger Clip Sensor Redel 6 Pin For Medical Monitor supplier
Profesiional Compatible Finger Clip Sensor Redel 6 Pin For Medical Monitor supplier Profesiional Compatible Finger Clip Sensor Redel 6 Pin For Medical Monitor supplier

Large Image :  Profesiional Compatible Finger Clip Sensor Redel 6 Pin For Medical Monitor

Product Details:

Place of Origin: China
Brand Name: Creative
Certification: CE
Model Number: Creative PC9000,UP6000

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 10*7*3(CM)/pc
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
Material: TUP/PVC - Latex - Free Function: Dressings And Care For Material
Style: Clip, Softwrap Color: Grey, White And Blue
Connector: Round 6pin Warranty: 12 Months

Detailed Product Description



Compatible: Creative PC-900,PC-900A,PC-900 Color;PC-3000 Patient
Monitor;*digital PD output directly DS.

Details:
6 pin 2 guides adult spo2 sensor 3m cable
monitor testing
Type: Reusable/ direct/ disposable,adult/ pediatric/ infant/ neonate finger clip/
soft tip/ slicone wrap spo2 sensor are available
Compatible module: Creative : pc9000,UP6000;TOB-MED:TOM MS-6-P;EDAN:M9;
BIOCARE:Bm9000;Goldway;CONTEC

http://www.spo2-ecg.com



OEM P/N Part No. Description(Cable & Connector)
  CRJ0001A-D Adult finger clip, 12ft blue cable & Hypertronics 7-Pin
  CRJ0002A-D Pediatric finger clip, 12ft blue cable & Hypertronics 7-Pin
  CRJ0003A-D Adult silicone soft tip, 12ft blue cable & Hypertronics 7-Pin
  CRJ0004A-D Pediatric silicone soft tip, 12ft blue cable & Hypertronics 7-Pin
  CRJ0005A-D Neonate silicone Wrap, 12ft blue cable & Hypertronics 7-Pin
  CRJ0006A-D Adult ear clip spo2 sensor ,Hypertronics with 7-pins, 12ft
Profesiional Compatible Finger Clip Sensor Redel 6 Pin For Medical MonitorProfesiional Compatible Finger Clip Sensor Redel 6 Pin For Medical Monitor Profesiional Compatible Finger Clip Sensor Redel 6 Pin For Medical Monitor


TECHNICAL PARAMETERS:

LEDS Red 660nm normal
Infrared 880 / 905 / 940nm normal
Test Range Oxygen Saturation(%SpO2) 0 % to 100 %
Pulse Rate(bpm) 30 to 245
Accuracy SpO2 ± 2%(90% -1 00 %)
±3%(70%-89 %)
unspecified(0-69 %)
Pulse Rate ±1 bpm(30 - 59bpm)
±2 bpm(60 - 149bmp)
±3 bpm(150 - 245bmp)
Storage and Transport Environment - 10°C~ + 40°C
Operating Temperature + 5°C~ + 40°C
Operating/Storage/Transportation humidity 0% - 80%
Hyperbaric pressure 86kPa - 106 kPa

Products more details

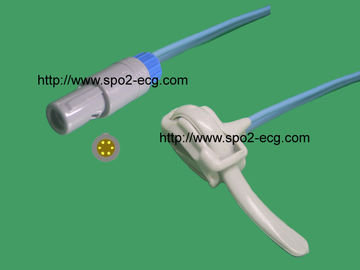

1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers, the hard plastic shell for fixed sensors is larger and fits adult measurement, the instruments of different brand its probe shell may be slightly different, different shell shape cannot influence the performance of product.
2. Pediatric finger clip type spo2 sensor
Such blood oxygen probes, sensors in children's fingers acquisition signal, the hard plastic shell used in fixed sensor is smaller and measurements are suitable for children.

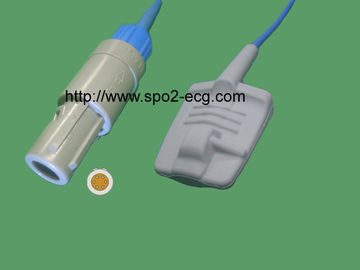

3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip
Such blood oxygen probe, sensor covered on adult finger to collect signals, the soft gel coat used in fixed sensors is bigger, suitable for adults. Different brands of instruments and its probe coat may be slightly different, different shape of coat cannot influence the product performance.
4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.
The type of blood oxygen sensor, the sensor wrapped in neonatal acquisition signals on his foot, fixed sensors used in soft gel coat is bind package type, suitable for newborns.



Profesiional Compatible Finger Clip Sensor Redel 6 Pin For Medical Monitor Profesiional Compatible Finger Clip Sensor Redel 6 Pin For Medical Monitor
