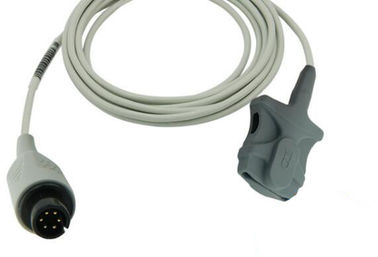

12 Feet SPO2 Finger Sensor Round 6 Pin For BM3 / BM3 Plus , CE Listed

I'm Online Chat Now

12 Feet SPO2 Finger Sensor Round 6 Pin For BM3 / BM3 Plus , CE Listed

China 12 Feet SPO2 Finger Sensor Round 6 Pin For BM3 / BM3 Plus , CE Listed supplier
12 Feet SPO2 Finger Sensor Round 6 Pin For BM3 / BM3 Plus , CE Listed supplier 12 Feet SPO2 Finger Sensor Round 6 Pin For BM3 / BM3 Plus , CE Listed supplier

Large Image :  12 Feet SPO2 Finger Sensor Round 6 Pin For BM3 / BM3 Plus , CE Listed

Product Details:

Place of Origin: China
Brand Name: Bionet (Korea)
Certification: CE
Model Number: Bionet (Korea):BM3,BM3

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 10*7*3(CM)/pc
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
Material: TUP/PVC - Latex - Free Function: Dressings And Care For Material
Style: Clip, Softwrap Color: Grey, White And Blue
Connector: Round 6pin Warranty: 12 Months

Detailed Product Description




Suitable for Bionet Korea BM3 BM3 Plus 6pin Socket 3M Adult Finger Guard Reusable Spo2 Sensor. Bionet monitors with high actuary and fast data.



http://www.spo2-ecg.com



OEM P/N Part No. Description(Cable & Connector)
  BNJ0001B Adult finger clip, round 6pin,12ft
  BNJ0002B Pediatric finger clip,round 6pin,12ft
  BNJ0003B Adult silicone soft tip, round 6pin,12ft
  BNJ0004B Pediatric silicone soft tip,round 6pin,12ft
  BNJ0005B Neonate silicone Wrap, round 6pin,12ft
  BNJ0006B Adult ear clip spo2 sensor ,round 6pin,12ft
12 Feet SPO2 Finger Sensor Round 6 Pin For BM3 / BM3 Plus , CE Listed 12 Feet SPO2 Finger Sensor Round 6 Pin For BM3 / BM3 Plus , CE Listed



Details:

7-pin  spo2 sensor,3 m OD 4.0mm TPU cable,monitor testing

Compatible: BM3



OEM P/N Part No. Description(Cable & Connector)
  BNJ0001A Adult finger clip, redel 7pin,12ft
  BNJ0002A Pediatric finger clip,redel 7pin,12ft
  BNJ0003A Adult silicone soft tip, redel 7pin,12ft
  BNJ0004A Pediatric silicone soft tip,redel 7pin,12ft
  BNJ0005A Neonate silicone Wrap, redel 7pin,12ft
  BNJ0006A Adult ear clip spo2 sensor ,redel 7pin,12ft
12 Feet SPO2 Finger Sensor Round 6 Pin For BM3 / BM3 Plus , CE Listed 12 Feet SPO2 Finger Sensor Round 6 Pin For BM3 / BM3 Plus , CE Listed

Compatible: BM3( need extension cable)



OEM P/N Part No. Description(Cable & Connector)
  BNJ0001 Adult finger clip, 3ft blue cable & DB9M
  BNJ0002 Pediatric finger clip,3ft blue cable & DB9M
  BNJ0003 Adult silicone soft tip, 3ft blue cable & DB9M
  BNJ0004 Pediatric silicone soft tip,3ft blue cable & DB9M
  BNJ0005 Neonate silicone Wrap, 3ft blue cable & DB9M
  BNJ0006 Adult ear clip spo2 sensor ,3ft blue cable & DB9M
12 Feet SPO2 Finger Sensor Round 6 Pin For BM3 / BM3 Plus , CE Listed 12 Feet SPO2 Finger Sensor Round 6 Pin For BM3 / BM3 Plus , CE Listed







TECHNICAL PARAMETERS:

LEDS Red 660nm normal
Infrared 880 / 905 / 940nm normal
Test Range Oxygen Saturation(%SpO2) 0 % to 100 %
Pulse Rate(bpm) 30 to 245
Accuracy SpO2 ± 2%(90% -1 00 %)
±3%(70%-89 %)
unspecified(0-69 %)
Pulse Rate ±1 bpm(30 - 59bpm)
±2 bpm(60 - 149bmp)
±3 bpm(150 - 245bmp)
Storage and Transport Environment - 10°C~ + 40°C
Operating Temperature + 5°C~ + 40°C
Operating/Storage/Transportation humidity 0% - 80%
Hyperbaric pressure 86kPa - 106 kPa

Products more details
1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers, the hard plastic shell for fixed sensors is larger and fits adult measurement, the instruments of different brand its probe shell may be slightly different, different shell shape cannot influence the performance of product.
2. Pediatric finger clip type spo2 sensor
Such blood oxygen probes, sensors in children's fingers acquisition signal, the hard plastic shell used in fixed sensor is smaller and measurements are suitable for children.
3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip
Such blood oxygen probe, sensor covered on adult finger to collect signals, the soft gel coat used in fixed sensors is bigger, suitable for adults. Different brands of instruments and its probe coat may be slightly different, different shape of coat cannot influence the product performance.
4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.
The type of blood oxygen sensor, the sensor wrapped in neonatal acquisition signals on his foot, fixed sensors used in soft gel coat is bind package type, suitable for newborns.



12 Feet SPO2 Finger Sensor Round 6 Pin For BM3 / BM3 Plus , CE Listed 12 Feet SPO2 Finger Sensor Round 6 Pin For BM3 / BM3 Plus , CE Listed
