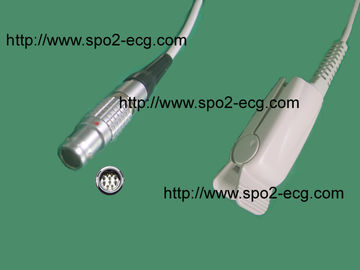

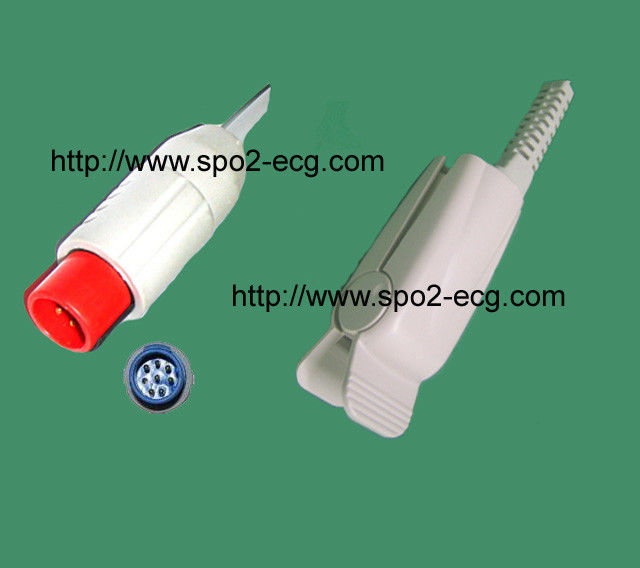

Medical Soft SPO2 Finger Sensor , Finger Clip Spo2 Sensor High Accuracy

Large Image : Medical Soft SPO2 Finger Sensor , Finger Clip Spo2 Sensor High Accuracy

Product Details:

Place of Origin:	China
Brand Name:	Mennen
Certification:	CE
Model Number:	MENNEN MEDICAL

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	1073(CM)/pc
Delivery Time:	5-7 work days
Payment Terms:	T/T, Western Union
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Material:	TUP/PVC - Latex - Free	Function:	Dressings And Care For Material
Style:	Clip, Softwrap	Color:	Grey, White And Blue
Connector:	Round 8pin	Warranty:	12 Months
High Light:	finger clip oxygen sensor , spo2 probe sensor

Detailed Product Description

Suitable for

Compatible Model NO. :

MENNEN MEDICAL

Specifications:

Measurement Wavelengths and Output Power:

Red: approximately 660nm;

Infrared: approximately 905nm;

Output Power: The total optical output power of the sensor LEDs is less than 15mW.

Oxygen Saturation Declared

Accuracy Range: (Arms): 70~100% SpO2 ±3 %

Pulse Rate Declared Accuracy Range ( Arms): 20~250 BPM ±3 digits

Temperature Limitation: -10 °C to +40 °C

Humidity (Operating): 0~80% non-condensing

Humidity (Storage/Transportation): 0~80% non-condensing

Hyperbaric Pressure(Operating/Storage/Transportation): 86kPa~106kPa

Latex-free, Double shielding, Anlistating, Low noise

http://www.spo2-ecg.com

OEM P/N	Part No.	Description(Cable & Connector)
	MMJ0001	Adult finger clip, 12ft blue cable & round 8pin
	MMJ0002	Pediatric finger clip, 12ft blue cable & round 8pin
	MMJ0003	Adult silicone soft tip, 12ft blue cable & round 8pin
	MMJ0004	Pediatric silicone soft tip, 12ft blue cable & round 8pin
	MMJ0005	Neonate silicone Wrap, 12ft blue cable & round 8pin
	MMJ0006	Adult ear clip spo2 sensor ,12ft blue cable & round 8pin

Suitable for Mennen medical Horizon2000

OEM P/N	Part No.	Description(Cable & Connector)
	MMJ0001A	Adult finger clip, 12ft blue cable & round 8pin
	MMJ0002A	Pediatric finger clip, 12ft blue cable & round 8pin
	MMJ0003A	Adult silicone soft tip, 12ft blue cable & round 8pin
	MMJ0004A	Pediatric silicone soft tip, 12ft blue cable & round 8pin
	MMJ0005A	Neonate silicone Wrap, 12ft blue cable & round 8pin
	MMJ0006A	Adult ear clip spo2 sensor ,12ft blue cable & round 8pin

TECHNICAL PARAMETERS:

LEDS	Red	660nm normal
	Infrared	880 / 905 / 940nm normal
Test Range	Oxygen Saturation(%SpO2)	0 % to 100 %
	Pulse Rate(bpm)	30 to 245
Accuracy	SpO2	± 2%(90% -1 00 %)
		±3%(70%-89 %)
		unspecified(0-69 %)
	Pulse Rate	±1 bpm(30 - 59bpm)
		±2 bpm(60 - 149bmp)
		±3 bpm(150 - 245bmp)
Storage and Transport Environment	- 10°C~ + 40°C
Operating Temperature	+ 5°C~ + 40°C
Operating/Storage/Transportation humidity	0% - 80%
Hyperbaric pressure	86kPa - 106 kPa

Products more details
1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers, the hard plastic shell for fixed sensors is larger and fits adult measurement, the instruments of different brand its probe shell may be slightly different, different shell shape cannot influence the performance of product.
2. Pediatric finger clip type spo2 sensor
Such blood oxygen probes, sensors in children's fingers acquisition signal, the hard plastic shell used in fixed sensor is smaller and measurements are suitable for children.
3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip
Such blood oxygen probe, sensor covered on adult finger to collect signals, the soft gel coat used in fixed sensors is bigger, suitable for adults. Different brands of instruments and its probe coat may be slightly different, different shape of coat cannot influence the product performance.
4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.
The type of blood oxygen sensor, the sensor wrapped in neonatal acquisition signals on his foot, fixed sensors used in soft gel coat is bind package type, suitable for newborns.
