DB 5 PIN Kernel SPO2 Probe Sensor / Pulse Oximetry Sensor For Medical Use

I'm Online Chat Now

DB 5 PIN Kernel SPO2 Probe Sensor / Pulse Oximetry Sensor For Medical Use

China DB 5 PIN Kernel SPO2 Probe Sensor / Pulse Oximetry Sensor For Medical Use supplier
DB 5 PIN Kernel SPO2 Probe Sensor / Pulse Oximetry Sensor For Medical Use supplier DB 5 PIN Kernel SPO2 Probe Sensor / Pulse Oximetry Sensor For Medical Use supplier

Large Image :  DB 5 PIN Kernel SPO2 Probe Sensor / Pulse Oximetry Sensor For Medical Use

Product Details:

Place of Origin: China
Brand Name: Kernel Medical
Certification: CE
Model Number: Kernel Medical KN601M

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 10*7*3(CM)/pc
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
Material: TUP/PVC - Latex - Free Function: Dressings And Care For Material
Style: Clip, Softwrap Color: Grey, White And Blue
Connector: 5pin Warranty: 12 Months

Detailed Product Description



Suitable for Specification: KN601M, 3M, 6Pin
OD 4.0mm TPU cable
One year warranty
CE & ISO 13485
Offer OEM/ODM

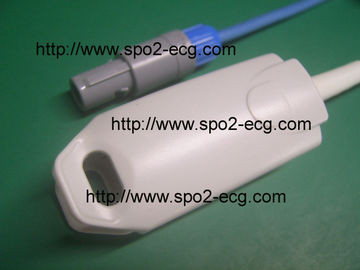

Kernel Medical adult finger clip spo2 probe with 6pin
 Compatible brand:Kernel
 Compatible model:Kn601M
Connector: DB 5 PIN.

Double shield structures
Copper Alloy, Additional tensile
Improve the anti-interference performance
Assure the signal accurate
Excellent Bio-compatible

The Emitter and Receiver: import sensors. The wavelength could be got to +/-1%, ensure the accuracy of the measurement
http://www.spo2-ecg.com



OEM P/NPart No.Description(Cable & Connector)
 KMJ0001Adult finger clip, redel 5-pin
 KMJ0002Pediatric finger clip, redel 5-pin
 KMJ0003Adult silicone soft tip, redel 5-pin
 KMJ0004Pediatric silicone soft tip, redel 5-pin
 KMJ0005Neonate silicone Wrap,redel 5-pin
 KMJ0006Adult ear clip spo2 sensor ,redel 5-pin
DB 5 PIN Kernel SPO2 Probe Sensor / Pulse Oximetry Sensor For Medical UseDB 5 PIN Kernel SPO2 Probe Sensor / Pulse Oximetry Sensor For Medical Use


TECHNICAL PARAMETERS:

LEDSRed660nm normal
Infrared880 / 905 / 940nm normal
Test RangeOxygen Saturation(%SpO2)0 % to 100 %
Pulse Rate(bpm)30 to 245
AccuracySpO2± 2%(90% -1 00 %)
±3%(70%-89 %)
unspecified(0-69 %)
Pulse Rate±1 bpm(30 - 59bpm)
±2 bpm(60 - 149bmp)
±3 bpm(150 - 245bmp)
Storage and Transport Environment- 10°C~ + 40°C
Operating Temperature+ 5°C~ + 40°C
Operating/Storage/Transportation humidity0% - 80%
Hyperbaric pressure86kPa - 106 kPa


Products more details
1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers, the hard plastic shell for fixed sensors is larger and fits adult measurement, the instruments of different brand its probe shell may be slightly different, different shell shape cannot influence the performance of product.
2. Pediatric finger clip type spo2 sensor
Such blood oxygen probes, sensors in children's fingers acquisition signal, the hard plastic shell used in fixed sensor is smaller and measurements are suitable for children.
3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip
Such blood oxygen probe, sensor covered on adult finger to collect signals, the soft gel coat used in fixed sensors is bigger, suitable for adults. Different brands of instruments and its probe coat may be slightly different, different shape of coat cannot influence the product performance.

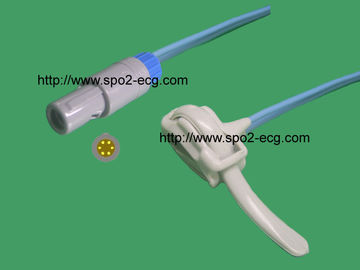

4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.
The type of blood oxygen sensor, the sensor wrapped in neonatal acquisition signals on his foot, fixed sensors used in soft gel coat is bind package type, suitable for newborns.



DB 5 PIN Kernel SPO2 Probe Sensor / Pulse Oximetry Sensor For Medical UseDB 5 PIN Kernel SPO2 Probe Sensor / Pulse Oximetry Sensor For Medical Use
