Pediatric Silicone SPO2 Finger Sensor TPU Compatible LANKE LK-8600A

I'm Online Chat Now

Pediatric Silicone SPO2 Finger Sensor TPU Compatible LANKE LK-8600A

China Pediatric Silicone SPO2 Finger Sensor TPU Compatible LANKE LK-8600A supplier
Pediatric Silicone SPO2 Finger Sensor TPU Compatible LANKE LK-8600A supplier Pediatric Silicone SPO2 Finger Sensor TPU Compatible LANKE LK-8600A supplier

Large Image :  Pediatric Silicone SPO2 Finger Sensor TPU Compatible LANKE LK-8600A

Product Details:

Place of Origin: China
Brand Name: LANKE
Certification: CE
Model Number: LANKE LK-8600A

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 10*7*3(CM)/pc
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
Material: TUP/PVC - Latex - Free Function: Dressings And Care For Material
Style: Clip, Softwrap Color: Grey, White And Blue
Connector: Redel 6pin(1bit) Warranty: 12 Months
High Light:

finger clip oxygen sensor

,

spo2 probe sensor

Compatible: LANKE:LK-8600A,CSI: RADO 4200,MAYTAG:MTK-2000,Shichuang:Prophet21



Specifications

Comen/Lanke/Maytag/CSI/strong spo2 sensor for adult and child
CE&ISO approved
Material:TPU

Comen/Lanke/Maytag/CSI/strong spo2 sensor for adult and child


This sensor connects directly to the bedside monitor without an extension cable. It works with the following patient monitors:
COMEN:STAR-1000
LANKE:LK-8600A
MAYTAG :MTK-2000
CSI: RADO 4200
Strong:Prophet21

Cable Material: Medical-grade TPU
Tip Material: Silicone (flexible, soft, latex-free, and reliable)

Connector for the machine is made of the import plastic and it feels comfortable when you touch, there is no sensitization for patient skin surface.

Features:
Double shield structures
Copper Alloy, Additional tensile
Improve the anti-interference performance
Assure the signal accurate
Excellent Bio-compatible

The Emitter and Receiver: import sensors. The wavelength could be got to +/-1%, ensure the accuracy of the measurement.



OEM P/N Part No. Description(Cable & Connector)
8776-00 LSJ0001 Adult finger clip, Readel 1bit-6p
  LSJ0002 Pediatric finger clip,Readel 1bit-6p
  LSJ0003 Adult silicone soft tip, Readel 1bit-6p
  LSJ0004 Pediatric silicone soft tip, Readel 1bit-6p
  LSJ0005 Neonate silicone Wrap, Readel 1bit-6p
  LSJ0006 Adult ear clip spo2 sensor ,Readel 1bit-6p
Pediatric Silicone SPO2 Finger Sensor TPU Compatible LANKE LK-8600A Pediatric Silicone SPO2 Finger Sensor TPU Compatible LANKE LK-8600A



TECHNICAL PARAMETERS:

LEDS Red 660nm normal
Infrared 880 / 905 / 940nm normal
Test Range Oxygen Saturation(%SpO2) 0 % to 100 %
Pulse Rate(bpm) 30 to 245
Accuracy SpO2 ± 2%(90% -1 00 %)
±3%(70%-89 %)
unspecified(0-69 %)
Pulse Rate ±1 bpm(30 - 59bpm)
±2 bpm(60 - 149bmp)
±3 bpm(150 - 245bmp)
Storage and Transport Environment - 10°C~ + 40°C
Operating Temperature + 5°C~ + 40°C
Operating/Storage/Transportation humidity 0% - 80%
Hyperbaric pressure 86kPa - 106 kPa

Products more details

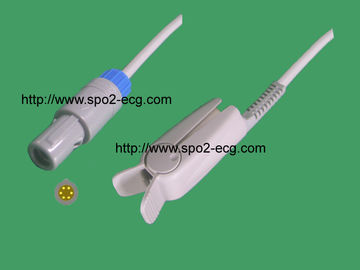

1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers, the hard plastic shell for fixed sensors is larger and fits adult measurement, the instruments of different brand its probe shell may be slightly different, different shell shape cannot influence the performance of product.
2. Pediatric finger clip type spo2 sensor
Such blood oxygen probes, sensors in children's fingers acquisition signal, the hard plastic shell used in fixed sensor is smaller and measurements are suitable for children.
3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip
Such blood oxygen probe, sensor covered on adult finger to collect signals, the soft gel coat used in fixed sensors is bigger, suitable for adults. Different brands of instruments and its probe coat may be slightly different, different shape of coat cannot influence the product performance.

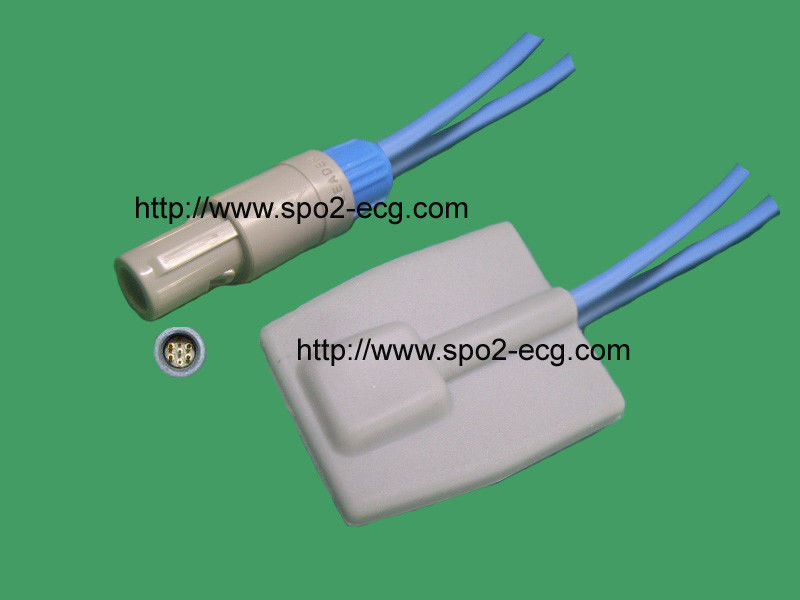

4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.
The type of blood oxygen sensor, the sensor wrapped in neonatal acquisition signals on his foot, fixed sensors used in soft gel coat is bind package type, suitable for newborns.



Pediatric Silicone SPO2 Finger Sensor TPU Compatible LANKE LK-8600A Pediatric Silicone SPO2 Finger Sensor TPU Compatible LANKE LK-8600A



Pediatric Silicone SPO2 Finger Sensor TPU Compatible LANKE LK-8600A Pediatric Silicone SPO2 Finger Sensor TPU Compatible LANKE LK-8600A Pediatric Silicone SPO2 Finger Sensor TPU Compatible LANKE LK-8600A Pediatric Silicone SPO2 Finger Sensor TPU Compatible LANKE LK-8600A Pediatric Silicone SPO2 Finger Sensor TPU Compatible LANKE LK-8600A
