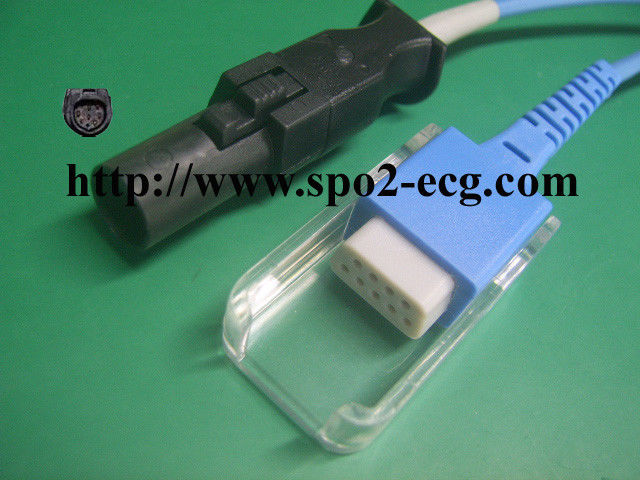

Medical Simed SPO2 Extension Cable Hypertronic 7 Pin For Spo2 Sensor

I'm Online Chat Now

Medical Simed SPO2 Extension Cable Hypertronic 7 Pin For Spo2 Sensor

China Medical Simed SPO2 Extension Cable Hypertronic 7 Pin For Spo2 Sensor supplier
Medical Simed SPO2 Extension Cable Hypertronic 7 Pin For Spo2 Sensor supplier Medical Simed SPO2 Extension Cable Hypertronic 7 Pin For Spo2 Sensor supplier

Large Image :  Medical Simed SPO2 Extension Cable Hypertronic 7 Pin For Spo2 Sensor

Product Details:

Place of Origin: China
Brand Name: SIMED(Baxter)
Certification: CE
Model Number: SIMED(Baxter) ASAT, S-50/100/100a

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 10*7*3(CM)/pc
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
Material: TUP/PVC - Latex - Free Function: Dressings And Care For Material
Style: Simed Color: Grey, White And Blue
Connector: 7pin Warranty: 12 Months

Detailed Product Description



Suitable for SIMED(Baxter) Baxter:ASAT; SiMED:S-50 SiMED:S-100; SiMED:S-100e.


Specifications

Connector: 8 Pins
Type: Simed Extension cable , Hypertronic 8pin>>DB9F, L=2.5m

Compatible SIMED ( Baxed ) Direct Connect Reusable Spo2 Sensor
Compatible/ Work with:
This compatible sensor connects directly to the bedside monitor. It works with the following patient monitors: Baxter ASAT; SiMED: S-50, S-100 and S-100e. 9-foot cable.Connector: 8 pins
Compatible for SIMED ( Baxter )
http://www.spo2-ecg.com


SIMED(Baxter)
Baxter:ASAT , SiMED:S-50;SiMED:S-100,
SiMED:S-100e

OEM P/N Part No. Description(Cable & Connector)
600015 SI0001 Simed Extension cable , Hypertronic 8pin>>DB9F, L=2.5m
Medical Simed SPO2 Extension Cable Hypertronic 7 Pin For Spo2 SensorMedical Simed SPO2 Extension Cable Hypertronic 7 Pin For Spo2 Sensor Medical Simed SPO2 Extension Cable Hypertronic 7 Pin For Spo2 Sensor

Cable Material: Medical-grade TPU
Storage and Transport Environment: -10°C ~ +40°C
Operating Temperature: +5°C~+40°C
All materials are touched by patients which are latex-free. We assure the best service, comfortable, wonderful and excellent products for you.

TECHNICAL PARAMETERS:

LEDS Red 660nm normal
Infrared 880 / 905 / 940nm normal
Test Range Oxygen Saturation(%SpO2) 0 % to 100 %
Pulse Rate(bpm) 30 to 245
Accuracy SpO2 ± 2%(90% -1 00 %)
±3%(70%-89 %)
unspecified(0-69 %)
Pulse Rate ±1 bpm(30 - 59bpm)
±2 bpm(60 - 149bmp)
±3 bpm(150 - 245bmp)
Storage and Transport Environment - 10°C~ + 40°C
Operating Temperature + 5°C~ + 40°C
Operating/Storage/Transportation humidity 0% - 80%
Hyperbaric pressure 86kPa - 106 kPa

Products more details
1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers, the hard plastic shell for fixed sensors is larger and fits adult measurement, the instruments of different brand its probe shell may be slightly different, different shell shape cannot influence the performance of product.
2. Pediatric finger clip type spo2 sensor
Such blood oxygen probes, sensors in children's fingers acquisition signal, the hard plastic shell used in fixed sensor is smaller and measurements are suitable for children.
3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip
Such blood oxygen probe, sensor covered on adult finger to collect signals, the soft gel coat used in fixed sensors is bigger, suitable for adults. Different brands of instruments and its probe coat may be slightly different, different shape of coat cannot influence the product performance.
4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.
The type of blood oxygen sensor, the sensor wrapped in neonatal acquisition signals on his foot, fixed sensors used in soft gel coat is bind package type, suitable for newborns.

Medical Simed SPO2 Extension Cable Hypertronic 7 Pin For Spo2 Sensor Medical Simed SPO2 Extension Cable Hypertronic 7 Pin For Spo2 Sensor




Medical Simed SPO2 Extension Cable Hypertronic 7 Pin For Spo2 Sensor
