Nihon Kohden Pediatric SPO2 Extension Cable TUP Materials CE Standard

I'm Online Chat Now

Nihon Kohden Pediatric SPO2 Extension Cable TUP Materials CE Standard

China Nihon Kohden Pediatric SPO2 Extension Cable TUP Materials CE Standard supplier
Nihon Kohden Pediatric SPO2 Extension Cable TUP Materials CE Standard supplier Nihon Kohden Pediatric SPO2 Extension Cable TUP Materials CE Standard supplier Nihon Kohden Pediatric SPO2 Extension Cable TUP Materials CE Standard supplier

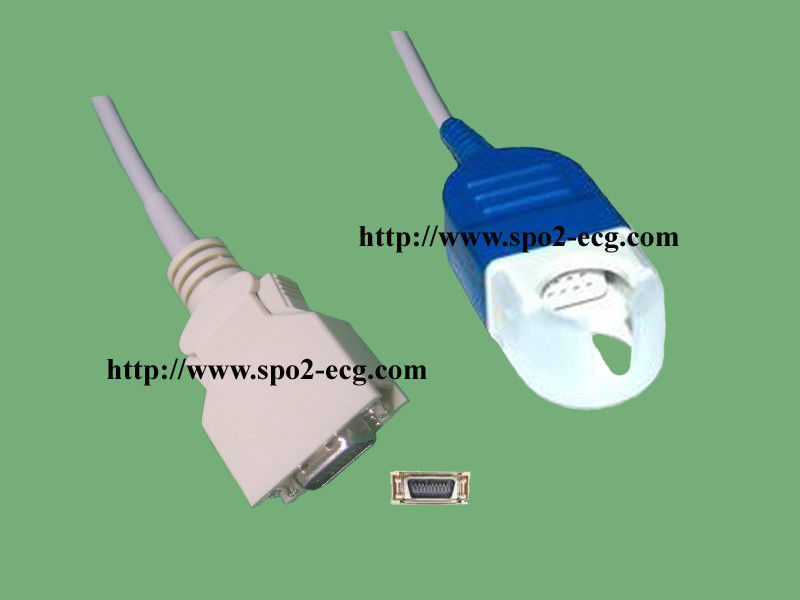

Large Image :  Nihon Kohden Pediatric SPO2 Extension Cable TUP Materials CE Standard

Product Details:

Place of Origin: China
Brand Name: Nihon Kohden
Certification: CE
Model Number: TL-201T and TL-101S

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 10*7*3(CM)/pc
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
Material: TUP/PVC - Latex - Free Function: Dressings And Care For Material
Style: Clip, Softwrap Color: Grey, White And Blue
Connector: Nihon Kohden 14pin And Round 10pin Warranty: 12 Months

Compatible Model NO. :



Nihon Kohden Medical:Bedside Monitor

BSM-4101,4103,4111,4113 LifeScope P;

BSM-5105,5135 Life Scope A;

BSM-2351,2353 Life Scope L;

BSM-2301,2303 Life Scope I;

BSM-73 .



Specifications:

  • Safety: IEC 60601-1-1 approved, conformity with MDD 93/42/EEC and EN9919:2005
  • Patient sizes: Pediatric
  • Ambient temperature: 0 to 40°C(32 to 104°F)
  • Relative humidity: 15% to 95%
  • Measurement technology: Tri-wavelength LEDs & photo detector
  • LED wavelength: 660nm/880nm/940nm
  • SpO2 accuracy: ±3 (70-100%); Unspecified (0-69%)
  • Pulse rate range: 20-250bpm
  • Pulse rate accuracy: ±3 (20-250bpm)
  • Packages: non-sterilization, individual package with instruction

http://www.spo2-ecg.com

Bedside Monitor: BSM-4101,4103,4111,4113 Life
scopeP,BSM-5105,5135 Life scopeA,BSM-
2351,2353 Life scopeL,BSM-2301,2303 Life
scope I

OEM P/N Part No. Description(Cable & Connector)
TL-201T NKA0002 8ft,Rectangle 14pin>DB9F,Nihon Konden
Nihon Kohden Pediatric SPO2 Extension Cable TUP Materials CE StandardNihon Kohden Pediatric SPO2 Extension Cable TUP Materials CE Standard Nihon Kohden Pediatric SPO2 Extension Cable TUP Materials CE Standard



Suitable for Nihon Kohden:AL-800PA Module BSM-1101 LifeScope
EC,BSM-2101/2 LifeScope L,BSM-3101 LifeScope LC,BSM-7100/7200
LifeScope 8,BSM-8200/1 LifeScope 12,BSM-8301/2 LifeScope 9,SM-8800
LifeScope14,OLV-1100A

OEM P/N Part No. Description(Cable & Connector)
  NKA0001 8ft,Round 10pin>DB9F,Nihon Kondon
Nihon Kohden Pediatric SPO2 Extension Cable TUP Materials CE StandardNihon Kohden Pediatric SPO2 Extension Cable TUP Materials CE Standard

 Nihon Kohden OPV-1500 , OPV-3100 OEM
Number:JL-302T

OEM P/N Part No. Description(Cable & Connector)
JL-302T NKA0003 8ft,3M 20pin>DB9F,Nihon Konden
Nihon Kohden Pediatric SPO2 Extension Cable TUP Materials CE StandardNihon Kohden Pediatric SPO2 Extension Cable TUP Materials CE Standard

TECHNICAL PARAMETERS:

LEDS Red 660nm normal
Infrared 880 / 905 / 940nm normal
Test Range Oxygen Saturation(%SpO2) 0 % to 100 %
Pulse Rate(bpm) 30 to 245
Accuracy SpO2 ± 2%(90% -1 00 %)
±3%(70%-89 %)
unspecified(0-69 %)
Pulse Rate ±1 bpm(30 - 59bpm)
±2 bpm(60 - 149bmp)
±3 bpm(150 - 245bmp)
Storage and Transport Environment - 10°C~ + 40°C
Operating Temperature + 5°C~ + 40°C
Operating/Storage/Transportation humidity 0% - 80%
Hyperbaric pressure 86kPa - 106 kPa



Products more details


1. Adult finger clip type spo2 sensor


Such blood oxygen probe, sensor acquires signal on adult fingers, the hard plastic shell for fixed sensors is larger and fits adult measurement, the instruments of different brand its probe shell may be slightly different, different shell shape cannot influence the performance of product.


2. Pediatric finger clip type spo2 sensor


Such blood oxygen probes, sensors in children's fingers acquisition signal, the hard plastic shell used in fixed sensor is smaller and measurements are suitable for children.


3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip


Such blood oxygen probe, sensor covered on adult finger to collect signals, the soft gel coat used in fixed sensors is bigger, suitable for adults. Different brands of instruments and its probe coat may be slightly different, different shape of coat cannot influence the product performance.


4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.


The type of blood oxygen sensor, the sensor wrapped in neonatal acquisition signals on his foot, fixed sensors used in soft gel coat is bind package type, suitable for newborns.
