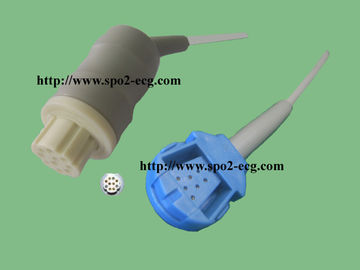

High Performance Datex Spo2 Cable DPK1 10 Pin Connector For Hodpital

I'm Online Chat Now

High Performance Datex Spo2 Cable DPK1 10 Pin Connector For Hodpital

China High Performance Datex Spo2 Cable DPK1 10 Pin Connector For Hodpital supplier
High Performance Datex Spo2 Cable DPK1 10 Pin Connector For Hodpital supplier High Performance Datex Spo2 Cable DPK1 10 Pin Connector For Hodpital supplier

Large Image :  High Performance Datex Spo2 Cable DPK1 10 Pin Connector For Hodpital

Product Details:

Place of Origin: China
Brand Name: Datex
Certification: CE
Model Number: Datex _ OXY - F4 - N

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 10*7*3(CM)/pc
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
Material: TUP/PVC - Latex - Free Function: Dressings And Care For Material
Style: Clip, Softwrap Color: Grey, White And Blue
Connector: DPK1 10Pin Warranty: 12 Months
High Light:

spo2 sensor cable

,

spo2 adapter cable

Detailed Product Description




Suitable for



This compatible sensor connects directly to the bedside monitor without an extension cable. It works with the following patient monitors: Datex-Ohmeda®: Aespire, Aespire 15, AS/3, AS/3 Compact, CS/3, S/5, S/5 Compact, CH/S, CH/2S, CH-RS, CG/2S, Cardiocap I, Cardiocap II, Cardiocap 5, Capnomac Ultima, Light Monitor, M-NESTPR, Oscar II, OSP-200, Satellite Trans, Satellite, Satellite Plus II, Trans Plus, System 5, ULTS00, OXY-E4-N, ULTSIO, ULTSVI, ULTSVO. 9-foot cable. Compatible sensors are available for the following Datex-Ohmeda® OEM part numbers:



  • OXY-F4-N (Adult Clip)
  • TS-F4-N (Adult Clip)
  • SAF-F4 (Adult Clip)
  • OXY-W4-N (Neonate Silicon Wrap)
  • OXY-E4-N (Adult Ear Clip)
  • TS-E4-N (Adult Ear Clip)

http://www.spo2-ecg.com

Datex-Ohmeda:AS/3, CS/3, CH/S,CH/2S, CH-RS, CG/2S,
CardiocapI, Cardiocap II, Cardiocap 5,Capnomac Ultima,
Light Monitor,M-Estpr, Oscar II, OSP200,Satlite Trans,
Satlite Trans Plus ,ULTSVI . ULTSVO, ULTSIO,ULTS00

OEM P/N Part No. Description(Cable & Connector)
OXY-C3 DA0001 8ft Blue Cable, DPK1-10pin>>DB9F,Datex


Datex-Ohmeda:AS/3, CS/3, CH/S,CH/2S, CH-RS, CG/2S,
CardiocapI, Cardiocap II, Cardiocap 5,Capnomac Ultima,
Light Monitor,M-Estpr, Oscar II, OSP200,Satlite Trans,
Satlite Trans Plus ,ULTSVI . ULTSVO, ULTSIO,ULTS00

OEM P/N Part No. Description(Cable & Connector)

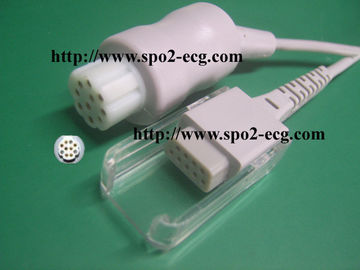

OXY-SL3 DA0002 8ft,Round 10J>8J, for Datex sensor
High Performance Datex Spo2 Cable DPK1 10 Pin Connector For HodpitalHigh Performance Datex Spo2 Cable DPK1 10 Pin Connector For Hodpital High Performance Datex Spo2 Cable DPK1 10 Pin Connector For Hodpital

TECHNICAL PARAMETERS:

LEDS Red 660nm normal
Infrared 880 / 905 / 940nm normal
Test Range Oxygen Saturation(%SpO2) 0 % to 100 %
Pulse Rate(bpm) 30 to 245
Accuracy SpO2 ± 2%(90% -1 00 %)
±3%(70%-89 %)
unspecified(0-69 %)
Pulse Rate ±1 bpm(30 - 59bpm)
±2 bpm(60 - 149bmp)
±3 bpm(150 - 245bmp)
Storage and Transport Environment - 10°C~ + 40°C
Operating Temperature + 5°C~ + 40°C
Operating/Storage/Transportation humidity 0% - 80%
Hyperbaric pressure 86kPa - 106 kPa



Products more details


1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers, the hard plastic shell for fixed sensors is larger and fits adult measurement, the instruments of different brand its probe shell may be slightly different, different shell shape cannot influence the performance of product.


2. Pediatric finger clip type spo2 sensor


Such blood oxygen probes, sensors in children's fingers acquisition signal, the hard plastic shell used in fixed sensor is smaller and measurements are suitable for children.


3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip


Such blood oxygen probe, sensor covered on adult finger to collect signals, the soft gel coat used in fixed sensors is bigger, suitable for adults. Different brands of instruments and its probe coat may be slightly different, different shape of coat cannot influence the product performance.


4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.


The type of blood oxygen sensor, the sensor wrapped in neonatal acquisition signals on his foot, fixed sensors used in soft gel coat is bind package type, suitable for newborns.
