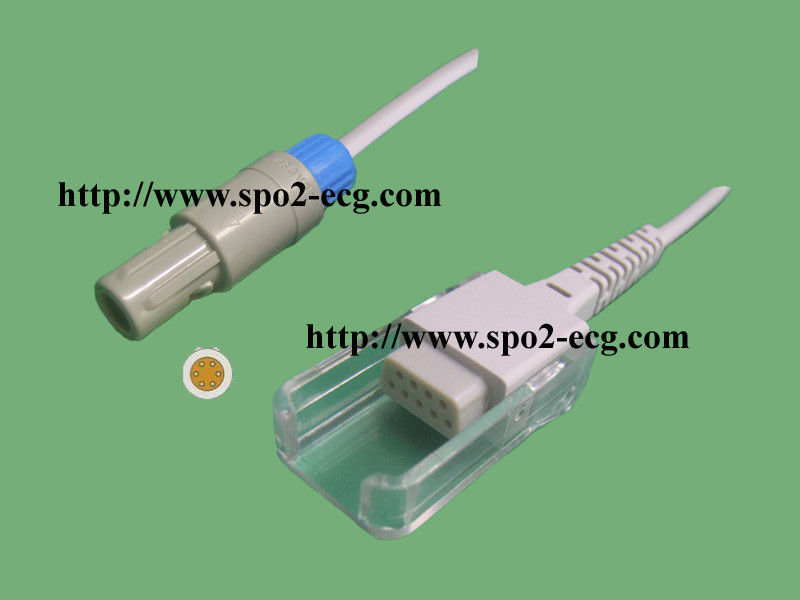

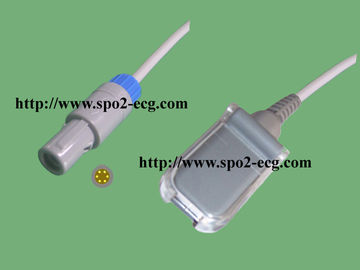

Reusable SPO2 Extension Cable 2 Bit 3m Length With Professional Custom

I'm Online Chat Now

Reusable SPO2 Extension Cable 2 Bit 3m Length With Professional Custom

China Reusable SPO2 Extension Cable 2 Bit 3m Length With Professional Custom supplier
Reusable SPO2 Extension Cable 2 Bit 3m Length With Professional Custom supplier Reusable SPO2 Extension Cable 2 Bit 3m Length With Professional Custom supplier

Large Image :  Reusable SPO2 Extension Cable 2 Bit 3m Length With Professional Custom

Product Details:

Place of Origin: China
Brand Name: Creative
Certification: CE
Model Number: Creative PC9000,UP6000

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 10*7*3(CM)/pc
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
Material: TUP/PVC - Latex - Free Function: Dressings And Care For Material
Style: Clip, Softwrap Color: Grey, White And Blue
Connector: Round 6pin Warranty: 12 Months

Detailed Product Description



Compatible: Creative PC-900,PC-900A,PC-900 Color;PC-3000 Patient
Monitor;*digital PD output directly DS.

Details:
6 pin 2 guides adult spo2 sensor 3m cable
monitor testing
Type: Reusable/ direct/ disposable,adult/ pediatric/ infant/ neonate finger clip/
soft tip/ slicone wrap spo2 sensor are available
Compatible module: Creative : pc9000,UP6000;TOB-MED:TOM MS-6-P;EDAN:M9;
BIOCARE:Bm9000;Goldway;CONTEC

http://www.spo2-ecg.com

Creative :PC9000,UP6000,TOB-MED:TOM MS-
6-P, EDAN: M9,BIOCARE: BM9000,Goldway, Contec


OEM P/N Part No. Description(Cable & Connector)
  CTA0001 Cable,8ft,Redel 6pin(2bit)>DB9F,BCI
Reusable SPO2 Extension Cable 2 Bit 3m Length With Professional Custom Reusable SPO2 Extension Cable 2 Bit 3m Length With Professional CustomReusable SPO2 Extension Cable 2 Bit 3m Length With Professional Custom



1. The production and management systems meets the requirements of ISO13485.
2. All the raw materials meets requirements of Bio-compatibility.
3. The pins of connector is made of copper plated gold by turning machine. The connectors are solid.
4. LED/PD comes from Korea OD Tech company and made of ceramic and epoxy resin which make our sensors high accuracy and have data fast.

TECHNICAL PARAMETERS:

LEDS Red 660nm normal
Infrared 880 / 905 / 940nm normal
Test Range Oxygen Saturation(%SpO2) 0 % to 100 %
Pulse Rate(bpm) 30 to 245
Accuracy SpO2 ± 2%(90% -1 00 %)
±3%(70%-89 %)
unspecified(0-69 %)
Pulse Rate ±1 bpm(30 - 59bpm)
±2 bpm(60 - 149bmp)
±3 bpm(150 - 245bmp)
Storage and Transport Environment - 10°C~ + 40°C
Operating Temperature + 5°C~ + 40°C
Operating/Storage/Transportation humidity 0% - 80%
Hyperbaric pressure 86kPa - 106 kPa

Products more details
1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers, the hard plastic shell for fixed sensors is larger and fits adult measurement, the instruments of different brand its probe shell may be slightly different, different shell shape cannot influence the performance of product.
2. Pediatric finger clip type spo2 sensor
Such blood oxygen probes, sensors in children's fingers acquisition signal, the hard plastic shell used in fixed sensor is smaller and measurements are suitable for children.
3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip
Such blood oxygen probe, sensor covered on adult finger to collect signals, the soft gel coat used in fixed sensors is bigger, suitable for adults. Different brands of instruments and its probe coat may be slightly different, different shape of coat cannot influence the product performance.
4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.
The type of blood oxygen sensor, the sensor wrapped in neonatal acquisition signals on his foot, fixed sensors used in soft gel coat is bind package type, suitable for newborns.



Reusable SPO2 Extension Cable 2 Bit 3m Length With Professional Custom Reusable SPO2 Extension Cable 2 Bit 3m Length With Professional Custom
