Home ProductsSPO2 Extension Cable

Professional Bruke Db9 Extension Cable 5V Round - 12pin With 0%-80% Humidity

I'm Online Chat Now

Professional Bruke Db9 Extension Cable 5V Round - 12pin With 0%-80% Humidity

China Professional Bruke Db9 Extension Cable 5V Round - 12pin With 0%-80% Humidity supplier
Professional Bruke Db9 Extension Cable 5V Round - 12pin With 0%-80% Humidity supplier Professional Bruke Db9 Extension Cable 5V Round - 12pin With 0%-80% Humidity supplier

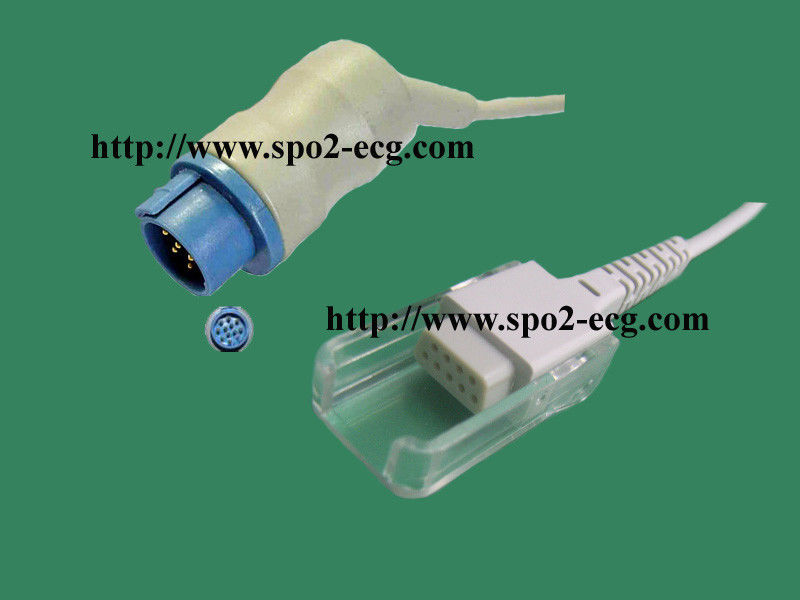

Large Image :  Professional Bruke Db9 Extension Cable 5V Round - 12pin With 0%-80% Humidity

Product Details:

Place of Origin: China
Brand Name: Bruke
Certification: CE
Model Number: Adult clip/ silicone soft

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 10*7*3(CM)/pc
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
Material: TUP/PVC-latex-free Function: Dressings And Care For Material
Style: Clip, Softwrap Color: Grey, White And Blue
Connector: Round - 12pin Warranty: 12 Months

Detailed Product Description

Specifications:
Storage and Transport Environment: -10°C~+40°C
Operating Temperature: +5°C~+40°C
Material: TPU cable, gold plated pin


Bruke Spo2 sensor,Bruke(odam) all as DC-3200, IH, M3
Adult finger clip, 10ft blue cable & Round-12pin
Pediatric finger clip, 10ft blue cable & Round-12pin
Adult silicone soft tip, 10ft blue cable & Round-12pin
Pediatric silicone soft tip, 10ft blue cable & Round-12pin
Neonate silicone Wrap, 10ft blue cable & Round-12pin
Adult ear clip spo2 sensor ,Round,12pins ,10ft

http://www.spo2-ecg.com
Bruker (Odam) all
Connector Guide: round 12pins
Compatibilities: Bruker(odam) all as DC-3200, IH, M3

OEM P/N Part No. Description(Cable & Connector)
8776-00 BKJ0001 Adult finger clip, 10ft blue cable & Round - 12pin
Professional Bruke Db9 Extension Cable 5V Round - 12pin With 0%-80% HumidityProfessional Bruke Db9 Extension Cable 5V Round - 12pin With 0%-80% Humidity Professional Bruke Db9 Extension Cable 5V Round - 12pin With 0%-80% Humidity

Working condition:

A. Environment temperature: 5°C~40°C
B. Relative humidity: 0%-80%
C. Atmospheric pressure: 700-1060 hPa
D. Power: 5V( ±10%)
TECHNICAL PARAMETERS:

LEDS Red 660nm normal
Infrared 880 / 905 / 940nm normal
Test Range Oxygen Saturation(%SpO2) 0 % to 100 %
Pulse Rate(bpm) 30 to 245
Accuracy SpO2 ± 2%(90% -1 00 %)
±3%(70%-89 %)
unspecified(0-69 %)
Pulse Rate ±1 bpm(30 - 59bpm)
±2 bpm(60 - 149bmp)
±3 bpm(150 - 245bmp)
Storage and Transport Environment - 10°C~ + 40°C
Operating Temperature + 5°C~ + 40°C
Operating/Storage/Transportation humidity 0% - 80%
Hyperbaric pressure 86kPa - 106 kPa

Products more details
1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers, the hard plastic shell for fixed sensors is larger and fits adult measurement, the instruments of different brand its probe shell may be slightly different, different shell shape cannot influence the performance of product.
2. Pediatric finger clip type spo2 sensor
Such blood oxygen probes, sensors in children's fingers acquisition signal, the hard plastic shell used in fixed sensor is smaller and measurements are suitable for children.
3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip
Such blood oxygen probe, sensor covered on adult finger to collect signals, the soft gel coat used in fixed sensors is bigger, suitable for adults. Different brands of instruments and its probe coat may be slightly different, different shape of coat cannot influence the product performance.
4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.
The type of blood oxygen sensor, the sensor wrapped in neonatal acquisition signals on his foot, fixed sensors used in soft gel coat is bind package type, suitable for newborns.



Professional Bruke Db9 Extension Cable 5V Round - 12pin With 0%-80% HumidityProfessional Bruke Db9 Extension Cable 5V Round - 12pin With 0%-80% Humidity Professional Bruke Db9 Extension Cable 5V Round - 12pin With 0%-80% Humidity
