Retail System Handheld Thermal Receipt Printer USB 150mm/S Fast Printing

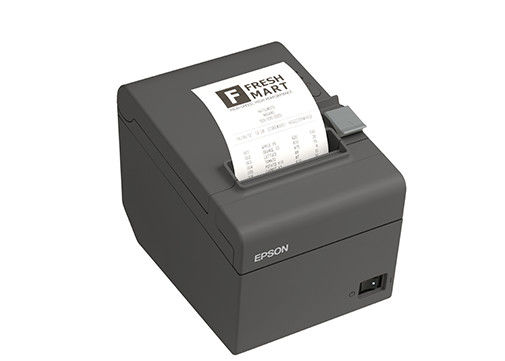

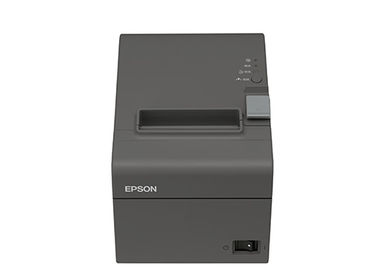

Epson TM-T82II Thermal printer:

TM-T82II Epson is an upgraded version of TM-T82 thermal printer, which is launched by Epson Corp after 80mm. The design is exquisite, easy to operate, horizontal, vertical, hanging wall and other installation methods can meet the different needs of users. TM-T82II adhering to the EPSON printer high-speed clear, stable and durable, and other excellent features, is your ideal printing partner

Printing speed: up to 200 mm / sec
Point density: 203 DPI * 203 DPI
Paper size: 79.5 + 0.5 (W) * dia. * 57.5, 83 + 0.5 (W) * dia. * 83
Interface: built-in USB, RS-232/ serial bidirectional parallel port, Ethernet port;
Reliability (print head life, tool life): 15 million lines, 1.5 million times

Product specifications
Print mode: thermal line
Print Font
Font: Font A:12 x 24, Font B 9 x 17, Chinese characters: 24 x 24
The number of columns
standard
80 mm paper width: Font A 48, Font B 64, Chinese characters: 24
58 mm paper width: Font A 35, Font B 46, Chinese characters: 17
42 column mode
80 mm paper width: Font A 42, Font B 60, Chinese characters: 21
58 mm paper width: Font A 42, Font B 31, Chinese characters: 15
Character size (mm): Font B 1.25 (W) x 3 (H), Font B 0.88 (W) x 2.13 (H),
Chinese characters: 3 (W) x 3 (H)

Character specification
The number of characters: 95
International character: 18 sets
Extended graphics: 128 x 43 pages
Chinese characters: GB18030
Bar code: UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN), CODE39, ITF,
CODABAR (NW-7), CODE93, CODE128, GS1-128, DataBar GS1
Two dimensional code: PDF417, QRCode, MaxiCode, GS1 DataBar 2D, Symbology Composite
Characters per inch: Font A: 16.9 Font B: CPI 22.6 CPI, Chinese characters: 7.8 CPI
Interface: built-in USB, RS-232/ serial bidirectional parallel port, Ethernet port;
Interface data buffer: 4 or KB 45 bytes
Print speed: up to 200 mm / sec
Point density: 203 DPI * 203 DPI

Paper size (mm)
Roll: 79.5 + 0.5 (W) 83 + 0.5 * dia., 57.5 * dia. (W) 83
Voltage: 24VDC + 7%
Power consumption: average 1.8A
Power supply: PS-180
D.K.D function: dual drive
Paper will do the sensor: installed

Reliability
Print head life: 15 million lines
Cutter life: 1 million 500 thousand times
MTBF: 360 thousand hours
MCBF: 60 million lines
Appearance size (mm): 140 (W) * 199 (D) * 146 (H)
Weight (weight): 1.7 kg
Electromagnetic compatibility: CCC
Safety standard: CCC

Option: double-sided adhesive glue (model: DF-10)
External buzzer (model: OT-BZ20)
Standard accessories: Volume 1 (x roll for the detection of initial setup, CD-ROM (printer) driver, software tools, user guide),
The power switch power switch cover, waterproof cover, wall mount, wall hanging bracket screws, rubber pads,
Control panel (using the vertical installation), 58 mm paper width baffle, external power supply PS-180
Installation: horizontal, vertical, vertical wall, wall hanging

main products are: electric and manual type read write card machine, card receiving and dispensing machine, card issuing machine, special ticket card processor. Company's products are widely used in finance, communications, electricity, energy, rail transportation, medical and other industries.

The company knows well quality is the life of an enterprise and is strictly
carrying out a quality control system according to ISO9001:2008 through all stages from R&D, manufacturing, inspection, warehousing, sales and after-saleservice, etc.

1,Raw material quality control

100% inspection to key components, partial inspection to accessory components

according to national standards. Traceable procedures are applied forcontinuous raw

material quality improvement.

2,Manufacturing process control
Quality Abnormity Notification will be issued in case there is any quality
abnormity during daily patrol, improvement methods are timely carried outafter

studying abnormity frequency, risk degree, etc.

3,Product quality control
Monthly summarization of product inspection data, traceable improvement methods
