100mA DC12V Card Issuing Machine Motor Card Reader For Cash Dispenser 86L X 55W Mm

I'm Online Chat Now

100mA DC12V Card Issuing Machine Motor Card Reader For Cash Dispenser 86L X 55W Mm

China 100mA DC12V Card Issuing Machine Motor Card Reader For Cash Dispenser 86L X 55W Mm supplier
100mA DC12V Card Issuing Machine Motor Card Reader For Cash Dispenser 86L X 55W Mm supplier 100mA DC12V Card Issuing Machine Motor Card Reader For Cash Dispenser 86L X 55W Mm supplier

Large Image :  100mA DC12V Card Issuing Machine Motor Card Reader For Cash Dispenser 86L X 55W Mm

Product Details:

Place of Origin: China
Brand Name: Motor Card Reader
Certification: CE
Model Number: ATM/Cash Dispenser, Information & Payment KIOSK, Vending Machine, Various Kiosks

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: orginal package
Delivery Time: 3-10 work days after receiving
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
Card Supported:: 86L X 55W Mm (0.76mm Standard Card) Power Supply:: DC12V±5%, 2A
Quiescent Current:: 100mA Service Life (Magnetic Head): 800, 000 Passes Min
Service Life (IC Contact): 500, 000 Passes Min. Operation Temperature / Humidity: 0°C To 50°C, 0 To 90% RH Without Condensation
Storage Temperature / Humidity: -25°C To 80°C, 0 To 90% RH Without Condensation C/R Dimension: 161L X 85W X 54H Mm (with Flat Bezel)

Motor Card Reader



Product Specifications/Features

KH-A6 series motorized card reader/writer supports RF/IC card R/W and magnetic card R, which is a product created from many years of technology and experience accumulation of KINGHOWE and the market demand.
KH-A6 is designed based on the development concept that integrates multiple functions. Careful material selection, rational structure and stable circuit design make it a highly reliable product, meanwhile, its bezel is designed with a user-friendly LED; all these enable KH-A6 to better meet the market requirements for motorized card reader/writer.

ELETRICAL Power Supply DC12V ± 5%,2A
Quiescent Current 100mA
Communication Method RS232 /USB( optional)
STRUCTURE Service Life Magnetic head 800,000 passes
IC contact 500,000 passes
Net Weight Approx. 390g
Package Dimension 245L x 137W x 93H mm
ENVIRONMENTAL Operation Temperature/ Humidity 0°C to 50°C, 0 to 90% RH without condensation
Storage Temperature/ Humidity -25°C to 80°C, 0 to 90% RH without condensation
PERFORMANCE Card Supported 86L x 55W mm (0.76mm standard card)
Magnetic Recording Capacity Track 1 (IATA): Max. of 79 charHCTers (6 bits + 1 parity)
Track 2 (ABA): Max. of 40 charHCTers (4 bits + 1 parity)
Track 3 (MINTS): Max. of 107 charHCTers (4 bits + 1 parity)
Magnetic Coercivity 24k~320k A/m (300~4000 Oe)+/-10%
Type A Operating Frequency 13.56 MHz
RF Communication Speed 105k bps


Product Descriptions
*EMV and PBOC certified.
*Supports ISO7810/7811 magnetic card reading only.
*Supports ISO7816-2 contact IC card reading/writing.
*Supports ISO14443-A Mifare Type A/B card reading/writing.
*Jitter card-in function: effectively precludes unauthorized card reading.
*Protruding bezel: for anti-theft is available.
*Bezel with LED light: provides card insertion indication and/or lighting and prevents the card being left inside.
*Independent sensor design: makes reader maintenance easy.
*Dustproof sensor lens: prevents sensor from dust and/or the other foreign materials.
*Mechanical shutter for protection against dust and/or the other foreign materials in the bezel position: enhances the reliability of the card reader.
*Four-set driving wheels: ensure the card transmission stability and liability and prevent card jam or block.
*One group of driving wheels in front of mag-head: enables automatic re-reading, which increases success rate of card reading.
*Card detecting function: automatically handles abnormal cards (broken card, incomplete card, etc.) and is able to eject card in case of power failure.
*Self-balancing mag-head reading function: provides stable reading and easy maintenance.
*High-performance plastic materials: ensure reading precision and product consistency.


Technical Specifications
*Card Supported: 86L x 55W mm (0.76mm standard card)
*Power Supply: DC12V±5%, 2A
*Quiescent Current: 100mA
*Service Life (Magnetic Head): 800, 000 passes min.
*Service Life (IC Contact): 500, 000 passes min.
*Operation Temperature / Humidity:0°C to 50°C, 0 to 90% RH without condensation
*Storage Temperature / Humidity:-25°C to 80°C, 0 to 90% RH without condensation
*Net Weight: Approx. 390g
*C/R Dimension: 161L x 85W x 54H mm (with flat bezel)
*Package Dimension:245L x 137W x 93H mm/pc/box
*Carton Dimension: 515L x 295W x 310 mm/CTN (12 PCS)

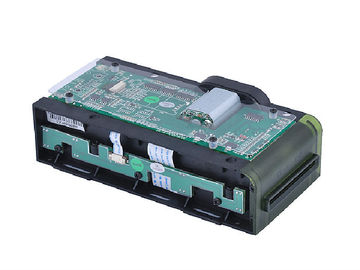

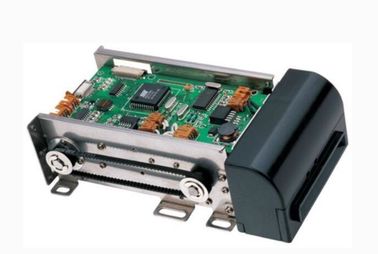

100mA DC12V Card Issuing Machine Motor Card Reader For Cash Dispenser 86L X 55W Mm 100mA DC12V Card Issuing Machine Motor Card Reader For Cash Dispenser 86L X 55W Mm


Optional Accessories
*SAM card board (max 4 SAM sockets).
*Switching board for DC/24V to DC/12V.
*Backup power supply

Application:

ATM/Cash Dispenser, Information & Payment KIOSK, Vending Machine, Various Kiosks.
