Product Details:
Payment & Shipping Terms:
|
Power Supply: | DC5V±5%, < 200mA | Quiescent Current: | 50mA |
---|---|---|---|
Communication Method: | USB (PC/SC Protocol) /RS23 (optional) | Service Life Of Card Socket: | ≥ 100, 000 Passes |
C/R Dimension: | 101L X 65.3W X 25.2H Mm | Operation Temperature/ Humidity: | 0°C To 50°C, 0 To 90% RH Without Condensation |
Storage Temperature / Humidity: | -25°C To 80°C, 0 To 90% RH Without Condensation | Cards Supported: | 86L X 55W Mm (0.76mm Standard Card) |
High Light: | automatic card dispenser,vending machine bill acceptor |

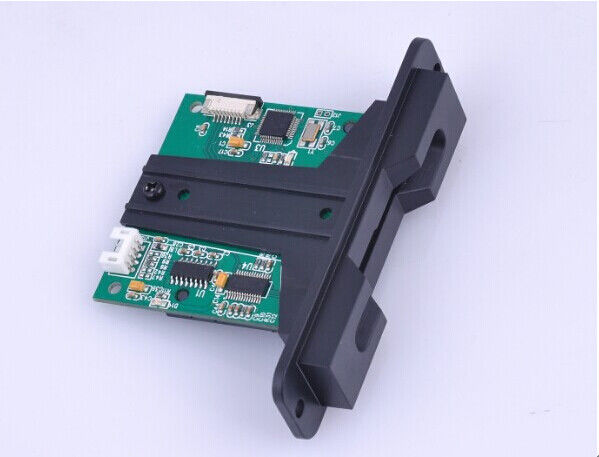

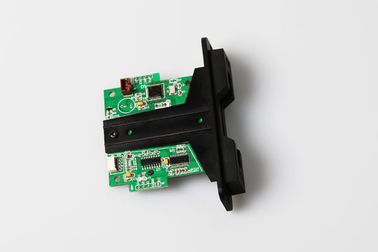

PT-3901/2 is a half-insertion manual IC card reader-writer-USB (PC/SC protocol) /RS23 (optional)
Product Specifications/Features
PT-3901/2 is a half-insertion manual IC card reader-writer which conforms to the ISO7816 standard. It is mostly used in the industries such as financing, electric power, medicine and lottery.
Technical Specifications
*Power Supply: DC5V±5%, < 200mA
*Quiescent Current: 50mA
*Communication Method: USB (PC/SC protocol) /RS23 (optional)
*Service Life of Card Socket: ≥ 100, 000 passes
*Net Weight: Approx. 38g (excluding accessories and package)
*C/R Dimension: 101L x 65.3W x 25.2H mm
*Operation Temperature/ Humidity: 0°C to 50°C, 0 to 90% RH without condensation
*Storage Temperature/ Humidity: -20°C to 70°C, 0 to 90% RH without condensation
*Cards Supported: 86L x 55W mm (0.76mm standard card)
*Card Types Supported: ISO7816 Classes A/B/C (5V, 3V)
*Operating System: Win 2000, Win XP, Win Vista, Win 7
POS terminal,Tax system,Medical and insurance system,Gaming system,Oiling machine,Public phones
