RS-232 Lightweight Card Issuing Machine Single / Double Track Magnetic Card Swiper

I'm Online Chat Now

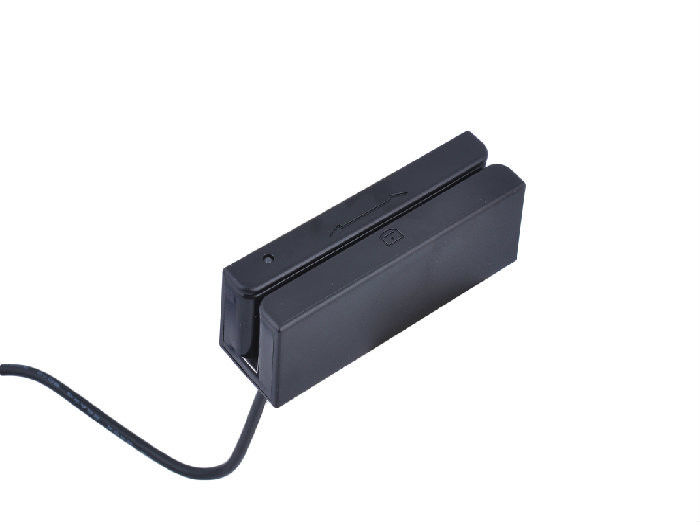

RS-232 Lightweight Card Issuing Machine Single / Double Track Magnetic Card Swiper

China RS-232 Lightweight Card Issuing Machine Single / Double Track Magnetic Card Swiper supplier
RS-232 Lightweight Card Issuing Machine Single / Double Track Magnetic Card Swiper supplier RS-232 Lightweight Card Issuing Machine Single / Double Track Magnetic Card Swiper supplier

Large Image :  RS-232 Lightweight Card Issuing Machine Single / Double Track Magnetic Card Swiper

Product Details:

Place of Origin: China
Brand Name: Card Issuing Machine
Certification: CE
Model Number: ATM/Cash Dispenser, Information & Payment KIOSK, Vending Machine, Various Kiosks

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: orginal package
Delivery Time: 3-10 work days after receiving
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
Power Supply: DC5V ± 5% Power Consumption: 40mA
Communication Method: RS-232 /USB /TTL /Keyboard (optional) Service Life (Magnetic Head): ≥ 500, 000 Passes
C/R Dimension: 90L X 27W X28H Mm Operation Temperature/ Humidity: 0°C To 50°C, 0 To 90% RH Without Condensation
Storage Temperature / Humidity: -25°C To 80°C, 0 To 90% RH Without Condensation Cards Supported: 86L X 55W Mm(0.76mm Standard Card)



Product Specifications/Features



KH-T5 swipe card reader is a card reading device specifically suitable for banking service. It is small sized, compactly structured and easily installed and can be directly connected with a PC to read card information.


Magnetic Card Swiper


Product Descriptions


*Supports ISO7811/7812 magnetic card read only.
*Single-track, double-track and triple-track types: are all available.
*Small size: is suitable for various POS terminals and other devices.
*Supports bidirectional card insertion/reading.
*RS-232, USB, keyboard or TTL communication methods: are optional.

Technical Specifications


*Power Supply: DC5V ± 5%
*Power Consumption: 40mA
*Communication Method: RS-232 /USB /TTL /Keyboard (optional)
*Service Life (Magnetic head): ≥ 500, 000 passes
*Net Weight: Approx. 83g
*C/R Dimension: 90L x 27W x28H mm
*Operation Temperature/ Humidity: 0°C to 50°C, 0 to 90% RH without condensation
*Storage Temperature/ Humidity: -20°C to 70°C, 0 to 90% RH without condensation
*Cards Supported: 86L x 55W mm(0.76mm standard card)
*Mag-track Width: 1.5mm
*Card Reading Speed: 15~120cm/sec

RS-232 Lightweight Card Issuing Machine Single / Double Track Magnetic Card Swiper RS-232 Lightweight Card Issuing Machine Single / Double Track Magnetic Card Swiper

Application:

POS, banking, and hospitality kiosks
