Single Box Card Dispenser Machine 100mA 9600b/S Baud Rate For Finance Industry

I'm Online Chat Now

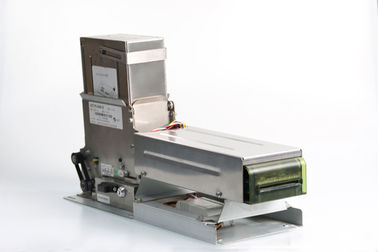

Single Box Card Dispenser Machine 100mA 9600b/S Baud Rate For Finance Industry

China Single Box Card Dispenser Machine 100mA 9600b/S Baud Rate For Finance Industry supplier

Large Image :  Single Box Card Dispenser Machine 100mA 9600b/S Baud Rate For Finance Industry

Product Details:

Place of Origin: China
Brand Name: Single box card issuing machine
Certification: CE
Model Number: mainly used in finance, communications, and medical industry

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: orginal package
Delivery Time: 3-10 work days after receiving
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
IC Standard:: ISO7816 Standard Communication Mode: RS-232 Semiduplex
Work Volage: DC24V±5% 2A Quiescent Current: 100mA
The Default Baud Rate: 9600b/s Storage Tank Loading(unit): 165
Working Life: (magnetic) Head ≥100million Times, IC Contactor ≥50million Times Storage Environment: Temperature / Humidity -10℃—60℃/0—90%(No Condensation)

KH-F5-2 Single box card issuing machine, mainly used in finance, communications, and medical industry self-service open-card, sales card etc.The product mainly adopt the hook card issuers, with convex word card can realize accurate issue card; card machine comes with a safety lock, with the installation of electric reader, read and write operations on the card.



Despriction:



● The use of reverse hook type card hook card, can accurately issue a variety of IC card and bank (Convex) card.

● The design of the hook type push hook is used to reduce the friction between the card and the card.

● With safety lock card box, and recovery box Design, improve the safety of the card management.

● Can cooperate with high-end electric reader,read and write operations on the card.

● Convenient, simple, stable, low noise, fast speed.

● Multiple sets of sensors can check Storage box pre - empty, storage box-empty, recycling box full, Stop card position etc.

● Can accurately determine the location of the stop card and the card status prompt function.

● Support online upgrade program.



Technical Parameter

Name Parameter
Card Size

L: 86mm

W:54mm

H:0.76mm±0.1mm

Communication mode

RS-232 semiduplex

4800,9600,19200,38400,57600 bps(Automatic acquisition baud rate)

Work Volage DC24V±5% 2A
Quiescent current 100mA
Max work current 5A
The default baud rate 9600b/s
Storage tank loading(unit) 165
Working life (magnetic) head 100million times, IC contactor ≥50million times
Work Environment Temperature / humidity 0℃--50℃/0-90%(No condensation)
Storage Environment Temperature / humidity -10℃—60℃/0—90%(No condensation)



Application



Financial, medical, transportation, communication etc industry
