Double Box RFID Card Dispenser DC12V With Semi Duplex Communication Mode

I'm Online Chat Now

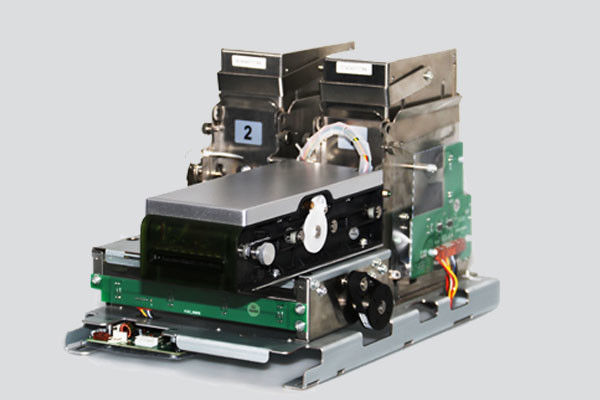

Double Box RFID Card Dispenser DC12V With Semi Duplex Communication Mode

China Double Box RFID Card Dispenser DC12V With Semi Duplex Communication Mode supplier

Large Image :  Double Box RFID Card Dispenser DC12V With Semi Duplex Communication Mode

Product Details:

Place of Origin: China
Brand Name: Double box card issuing machine
Certification: CE
Model Number: mainly used in finance, communications, and medical industry

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: orginal package
Delivery Time: 3-10 work days after receiving
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
Quantity Of Storage Tank: 2 Piece Communication Mode: RS-232 Semiduplex
Recycling Tank Capacity: 20PCS Working Life: (magnetic) Head ≥100million Times, IC Contactor ≥50million Times
Work Volage: DC12V±5% 2A Storage Environment: Temperature / Humidity -10℃—60℃/0—90%(No Condensation)
Storage Environment: Temperature / Humidity -10℃—60℃/0—90%(No Condensation) Quiescent Current: 200mA
IC Standard:: ISO7816 Standard
High Light:

smart card dispenser

,

sim card dispenser

KH-F5-5 Double box card issuing machine, mainly used in finance, communications, and medical industry self-service open-card, sales card etc.The product mainly adopt the hook card issuers, with convex word card can realize accurate issue card; card machine comes with a safety lock, with the installation of electric reader, read and write operations on the card.



Despriction:

● The use of reverse hook type card hook card, can accurately issue a variety of IC card and bank (Convex) card.

● Double card box design, to achieve a multi-purpose machine.

● With safety lock card box, and recovery box Design, improve the safety of the card management.

● Issue card box can be independently removed and with a separate lock.

● Can cooperate with high-end electric reader,read and write operations on the card.

● Multiple sets of sensors can check Storage box pre - empty, storage box-empty, storage position. and recycling box multiple sets of sensors.

● Can accurately determine the location of the card and the card status prompt function.

● Support online upgrade program.



Technical Parameter

Name Parameter
Support card
(optional)

Magcard standard,physical propert,Conformity ISO7810 and 7811,ISO7811-2,ISO7811-4,ISO7811-5 and ISO7811-6 standard.

Card size: ISO78101D-1 type Magcard standard

Embossed convex card: ISO7811-1 and ISO7811-3 standard

IC standard: ISO7816 standard, surport AT24C01,24C02,24C256,SLE4442,SLE4428,CPU T=0/T=1

Card Size

L: 85.47-85.90mm

W:53.92-54.18mm

H:0.76mm±0.1mm

Communication mode RS-232 semiduplex
Work Volage DC12V±5% 2A
Quiescent current 200mA
Quantity of storage tank 2 piece
Recycling tank capacity 20PCS
Storage tank loading(unit) ≥100
Magnetic stripes card repeat rate ≤1/1000
Working life (magnetic) head 100million times, IC contactor ≥50million times
Work Environment Temperature / humidity 0℃--50℃/0-90%(No condensation)
Storage Environment Temperature / humidity -10℃—60℃/0—90%(No condensation)



Application

Financial, medical, transportation, communication etc industry
