RS232 Card Dispenser Machine Default Address With Multiple Communications

: Large Image : RS232 Card Dispenser Machine Default Address With Multiple Communications

Product Details:

Place of Origin:	China
Brand Name:	Card dispenser machine
Certification:	CE
Model Number:	mainly used in finance, communications, and medical industry

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	orginal package
Delivery Time:	3-10 work days after receiving
Payment Terms:	T/T, Western Union
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

IC Standard::	ISO7816 Standard	Communication Mode:	RS232 (multiple Communications Supported, With Default Address 00)
Work Volage:	DC24V ± 5%, 2.5A	Quiescent Current:	200mA
Service Life:	≥ 1, 000, 000 Passes	Capture Box Capacity:	25 Pcs (0.76mm Standard Card)
Card Stacker Capacity:	155 Pcs (0.76mm Standard Card) /120 Pcs (0.76mm Embossing Card) /300 Pcs (0.4mm Thickness)	Storage Environment:	Temperature / Humidity -10℃—60℃/0—90%(No Condensation)
High Light:	smart card dispenser , gift card dispenser

Card Issuing Machine

Product Specifications/Features

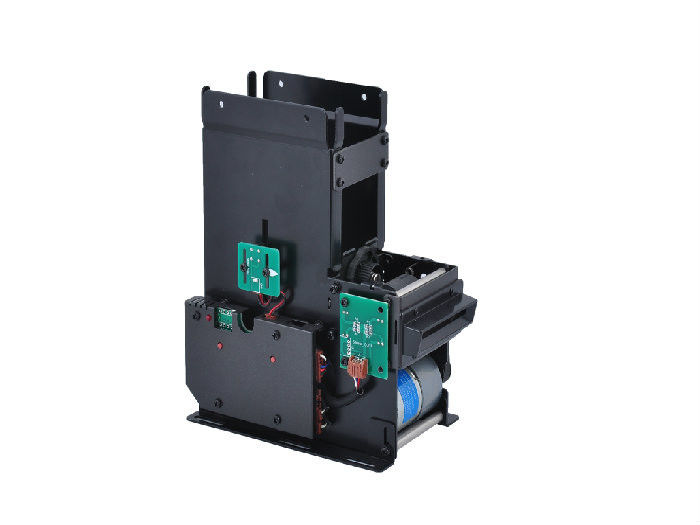

KH-F1B series card dispenser is a high-performance card issuing device which primarily dispenses paper tickets and PVC cards to users according to instructions from HOST. It is primarily applicable to self-service terminals such as parking lot management system, expressway toll gate, self-service charging system, self-service card vending terminal, etc.

Technical Specifications

Card Supported	86L x 55W mm (0.2~1.2mm thickness; factory standard: 0.8mm)
Power Supply	DC24V ± 5%, 2.5A
Quiescent Current	200mA
Communication Method	RS232 (multiple communications supported, with default address 00)
Service Life	≥ 1, 000, 000 passes
Card Stacker Capacity	155 pcs (0.76mm standard card) /120 pcs (0.76mm embossing card) /300 pcs (0.4mm thickness)
Capture Box Capacity	25 pcs (0.76mm standard card)
Net Weight	Approx. 1.6KG (excluding accessories and package)
C/D Dimension	236L x 100W x 200H mm/pc
Carton Dimension	515L x 295W x 310 mm/CTN (4 PCS)
Operation Temperature/ Humidity	-10°C to 70°C, 0 to 90% RH without condensation
Storage Temperature/ Humidity	-25°C to 80°C, 0 to 90% RH without condensation

Product Descriptions
*Unique dispensing wheel design: is capable of issuing various embossing cards accurately.
*Convenient and simple card adjustment design: is stable and accurate to dispense cards with various thicknesses.
*Multiple sensors: are able to judge the card position and indicate the card status.
*Scientific card transfer wheel design: automatically avoids dust accumulation which will lead to slippage.
*Multiple levels of sensor circuit protection: prevents optical interference.
*Supports multiple communications (max. 16 C/Ds).
*Supports online upgrade program.

Optional Accessories
*Stacker (model no.: KH-S003)

Application:

Information kisok , Transportation system ,Telecommunication system ,Paper ticket issuing ,Gas station ,Toll gate ,Parking system
