50mm Long Range RF Communication Module RS232 / USB Mode With 50mA Current

I'm Online Chat Now

50mm Long Range RF Communication Module RS232 / USB Mode With 50mA Current

China 50mm Long Range RF Communication Module RS232 / USB Mode With 50mA Current supplier

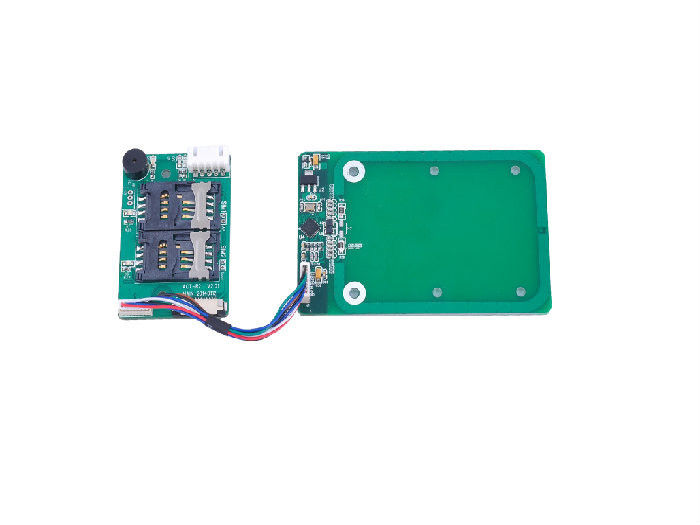

Large Image :  50mm Long Range RF Communication Module RS232 / USB Mode With 50mA Current

Product Details:

Place of Origin: China
Brand Name: RF Module
Certification: CE
Model Number: mainly used in finance, communications, and medical industry

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: orginal package
Delivery Time: 3-10 work days after receiving
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
Quiescent Current: 50mA Communication Mode: RS232/USB(optional)
Work Volage: DC5V±5%, 200mA C/R Dimension: 106.6L X 67W X 16H Mm
Service Life: SAM Socket ≥ 100, 000 Times RF R/W Distance: Up To 50mm (normal)
Operation Temperature/ Humidity: 0°C To 50°C, 0 To 90% RH Without Condensation Storage Temperature/ Humidity: -20°C To 70°C, 0 To 90% RH Without Condensation
High Light:

rfid card dispenser

,

vending machine bill acceptor

RF Module

Product Specifications/Features

KH-R1B has the USB online firmware upgrading function and adopts the high performance RF, so it is a highly cost-effective and powerful integrated device, providing convenience for the application of many smart cards.





Technical Specifications

Power Supply DC5V±5%, 200mA
Quiescent Current 50mA
Communication Method RS232/USB (optional)
Service Life(Issuing life) SAM socket ≥ 100, 000 times
C/R Dimension 92L x 59W x 16H mm
Standard Cabling Length RS232 serial port line: 2.5m (powered by USB) /USB line: 1.5m
Net Weight Approx. 30g
Cards Supported 86L x 55W mm(0.76mm standard card)
Types of Cards Supported Conforms to Classes A/B/C of the ISO7816 standard (5V, 3V, 1.8V) Supports Classes A/B and Mifare meeting ISO14443 standards, and Mifare S50/S70 card, Meets the ISO-18092 standards and comprehensively support NFC functions.
Operation Temperature/ Humidity 0°C to 50°C, 0 to 90% RH without condensation
Storage Temperature/ Humidity -20°C to 70°C, 0 to 90% RH without condensation
RF R/W Distance Up to 50mm
Operating System Win 2000, Win XP, Win Vista, Win 7
Operating Frequency 13.56 MHz
Standard/Certification Full speed certification of PC/SC, CCID, CE, FCC, RoHS and USB



Product Descriptions
*Supports ISO14443 Standard 1-4 contactless smart card.
*Supports ISO7816 standards 1-4 contact smart card.
*Supports SLE5528, SLE5542 and other memory cards.
*Supports the latest Mifare Plus and DESFire EV1.
*Supports the simulation of T = CL MIFARE1K/4K PICCS, multi-module transmission mode and high-efficiency PICC access.
*Meets the PC/SC and CCID standards.
*Supports the expanded APDU (a maximum of 64K bytes).
*Built-in antenna and supports the non-contact access application meeting the PICC standards.
*R/W cards with contactless interfaces at a speed of 848 kbps.
*Built-in anti-collision function (when there are more than one cards, at least one card can be detected).
*Built-in SAM socket: supports operations to the SAM card.
*Supports the firmware upgrading function.
*Monophonic buzzer and monochrome LED indicator: can be controlled by user.
*USB: full speed (12 Mbps).



Application:

* Banking system,Information kisok ,Transportation system ,Telecommunication system ,Paper ticket issuing ,Gas station ,Toll gate ,Parking system
