13.56 MHz 50mA Smart Card Issuing Machine RS232 / USB With Two Interfaces

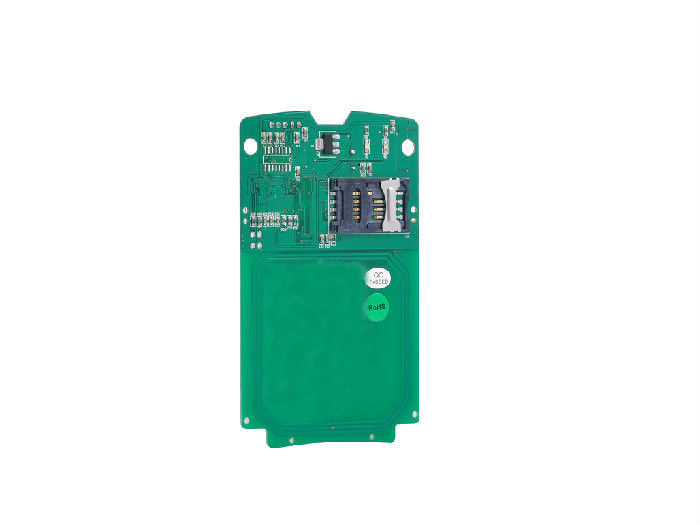

: Large Image : 13.56 MHz 50mA Smart Card Issuing Machine RS232 / USB With Two Interfaces

Product Details:

Place of Origin:	China
Brand Name:	Smart Card Reader Module
Certification:	CE
Model Number:	mainly used in finance, communications, and medical industry

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	orginal package
Delivery Time:	3-10 work days after receiving
Payment Terms:	T/T, Western Union
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Quiescent Current:	50mA	Communication Mode:	RS232/USB(optional)
Work Volage:	DC5V ±5%, / 200mA	C/R Dimension:	106.6L X 67W X 16H Mm
Service Life:	SAM Socket ≥ 100, 000 Times	RF R/W Distance:	Up To 50mm (normal)
Operation Temperature/ Humidity:	0°C To 50°C, 0 To 90% RH Without Condensation	Storage Temperature/ Humidity:	-20°C To 70°C, 0 To 90% RH Without Condensation
High Light:	rfid card dispenser , vending machine bill acceptor

Smart Card Reader Module

Product Specifications/Features

KH-R1A is a hybrid reader/writer with two interfaces, supports ISO 14443 contactless smart cards reading/writing and conforms to the PC/SC protocol. In this product, the SAM socket can be expanded for further improving security of the contact and contactless application.

Technical Specifications

Power Supply	DC5V±5%, 200mA
Quiescent Current	50mA
Communication Method	RS232/USB (optional)
Service Life(Issuing life)	SAM socket ≥ 100, 000 times
C/R Dimension	106.6L x 67W x 16H mm
Standard Cabling Length	RS232 serial port line: 2.5m /USB line: 1.5m
Net Weight	Approx. 30g
Cards Supported	86L x 55W mm(0.76mm standard card)
Types of Cards Supported	Conforms to Classes A/B/C of the ISO7816 standard(5V, 3V, 1.8V)Supports Classes A/B and Mifare meeting ISO14443 standards
Operation Temperature/ Humidity	0°C to 50°C, 0 to 90% RH without condensation
Storage Temperature/ Humidity	-20°C to 70°C, 0 to 90% RH without condensation
RF R/W Distance	Up to 50mm (normal)
Operating System	Win 2000, Win XP, Win Vista, Win 7
Operating Frequency	13.56 MHz
Standard/Certification	Full speed certification of PC/SC, CCID, CE, FCC, RoHS and USB

Product Descriptions

* Supports ISO14443 Standard 1-4 contactless smart card.
* Supports ISO7816 standards 1-4 contact smart card.
* Supports SLE5528, SLE5542 and other memory cards.
* Supports the latest Mifare Plus and DESFire EV1.
* Supports the simulation of T = CL MIFARE1K/4K PICCS, multi-module transmission mode and high-efficiency PICC access.
* Meets the PC/SC and CCID standards.
* Supports the expanded APDU (a maximum of 64K bytes).
* Built-in antenna and supports the non-contact access application meeting the PICC standards.
* R/W cards with contactless interfaces at a speed of 848 kbps.
* Built-in anti-collision function (when there are more than one cards, at least one card can be detected).
* Built-in SAM socket: supports operations to the SAM card.
* Supports the firmware upgrading function.
* Monophonic buzzer and monochrome LED indicator: can be controlled by user.
* USB: full speed (12 Mbps).

Application:

* Banking system,Information kisok ,Transportation system ,Telecommunication system ,Paper ticket issuing ,Gas station ,Toll gate ,Parking system
