Medium Card Issuing Machine RS232 Interface For Self Service Vending Machine

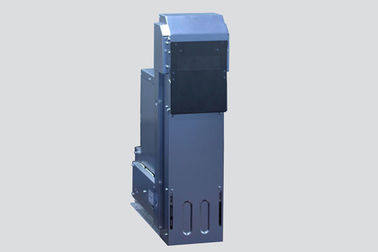

Large Image : Medium Card Issuing Machine RS232 Interface For Self Service Vending Machine

Product Details:

Place of Origin:	China
Brand Name:	Medium Issue Machine
Certification:	CE
Model Number:	mainly used in finance, communications, and medical industry

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	orginal package
Delivery Time:	3-10 work days after receiving
Payment Terms:	T/T, Western Union
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Quiescent Current:	200mA	Communication Mode:	RS232 Interface
Work Volage:	DC24V±5%	Maximum Operating Current:	2.5A
The Default Baud Rate:	960b/s	Storage Tank Loading:	30pcs(20mm Thickness)/40pcs(15mm Thickness)
Operation Temperature/ Humidity:	0°C To 50°C, 0 To 90% RH Without Condensation	Storage Temperature/ Humidity:	-20°C To 70°C, 0 To 90% RH Without Condensation
High Light:	automatic card dispenser , vending machine bill acceptor

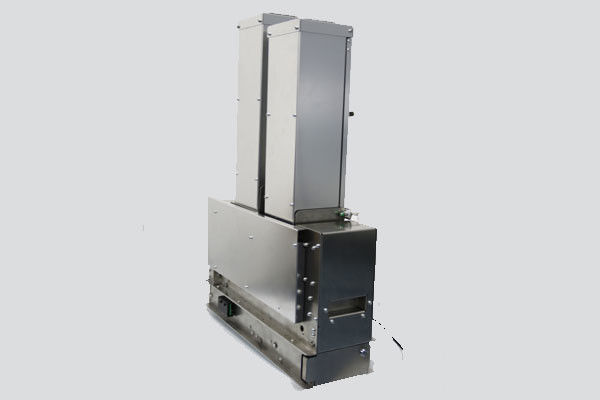

Medium Issue Machine

KH-U6--S series Medium Issue Machine, Customers will be irregular Packaged into (specified in the size) regular products to self-sale. Suitable for all kinds of self-service terminal.

Despriction:

● Can install scanner.

● With the recycling function, can recycling the products that none extracted or the failure of reading.

● Multiple sets of sensors can check Storage box pre - empty, storage box space, medium position.

● Closed KEY box, with a lock and can be fixed with the equipment, KEY box separation, easy to separate management.

● Automatic detection and remote reset function, support KEY as the empty state; swallow KEY, abnormal, recycle box with medium etc other status and fault code.

● With a separate recycling box, each of the recycling box capacity of 4 KEY and above, to support the recovery box full state detection.

● Support online upgrade program.

Technical Parameter

Name	Parameter
Box Size	L:100±1 mm,W:80±0.5 mm H:15/20±0.5 mm(Customizable)
Communication Mode	RS232 interface
working voltage	DC24V±5%
Quiescent current	200mA
Maximum operating current	2.5A
The default baud rate	960b/s
Storage tank loading	30pcs(20mm thickness)/40pcs(15mm thickness)
Recycling box channel capacity	5
Work Environment	Temperature / humidity 0℃--50℃/0-90%(No condensation)
Storage Environment	Temperature / humidity -20℃—60℃/0—90%(No condensation)
