Automatic RFID Card Dispenser Machine 200mA For Self Service Terminal Kiosk

I'm Online Chat Now

Automatic RFID Card Dispenser Machine 200mA For Self Service Terminal Kiosk

China Automatic RFID Card Dispenser Machine 200mA For Self Service Terminal Kiosk supplier

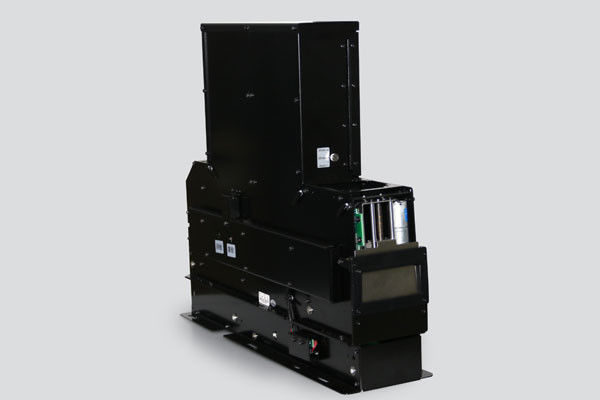

Large Image :  Automatic RFID Card Dispenser Machine 200mA For Self Service Terminal Kiosk

Product Details:

Place of Origin: China
Brand Name: Medium issuing machine
Certification: CE
Model Number: mainly used in finance, communications, and medical industry

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: orginal package
Delivery Time: 3-10 work days after receiving
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
Quiescent Current: 200mA Communication Mode: RS232 Interface
Work Volage: DC24V±5% Maximum Operating Current: 2.5A
The Default Baud Rate: 960b/s Storage Tank Loading: 30pcs(20mm Thickness)/40pcs(15mm Thickness)
Operation Temperature/ Humidity: 0°C To 50°C, 0 To 90% RH Without Condensation Storage Temperature/ Humidity: -20°C To 70°C, 0 To 90% RH Without Condensation

Medium issuing machine

KH-U1 series Medium issuing machine, Customers will be irregular Packaged into (specified in the size) regular products to self-sale. Suitable for all kinds of self-service terminal.



Despriction:



● Double shield box design, enhance the storage capacity of equipment

● Can install scanner.

● With the recycling function, can recycling the products that none extracted or the failure of reading..

● Multiple sets of sensors can check Storage box pre - empty, storage box space, medium position.

● Support online upgrade program.



Technical Parameter



Name Parameter
Box Size

L:100±2 mm,W:80±0.5 mm

H:20±0.5 mm(Customizable)

Communication Mode RS232 interface
working voltage DC24V±5%
Quiescent current 200mA
Maximum operating current 2.5A
The default baud rate 9600b/s
Storage tank loading 30pcs(20mm thickness)
Recycling box channel capacity 5
Work Environment Temperature / humidity 0℃--50℃/0-90%(No condensation)
Storage Environment Temperature / humidity -10℃—60℃/0—90%(No condensation)



Application

Financial, medical, transportation, communication etc industry
