IC Standard:: | ISO7816 Standard | Communication Mode: | RS-232 Semiduplex |
---|---|---|---|
Work Volage: | DC24V±5% 2A | Quiescent Current: | 200mA |
Quantity Of Storage Tank: | 3 Piece | Storage Tank Loading(unit): | ≥100 |
Magnetic Stripes Card Repeat Rate: | ≤1/1000 | Storage Environment: | Temperature / Humidity -10℃—60℃/0—90%(No Condensation) |
High Light: | smart card dispenser,gift card dispenser |

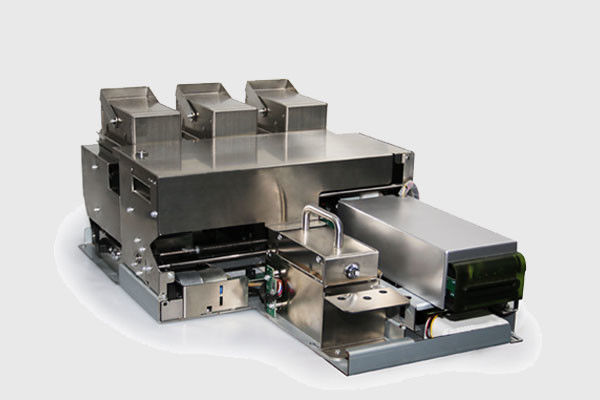

KH-F6-6090 series Three box card issuing machine, mainly used in finance, communications, and medical industry self-service open-card, sales card etc.The product mainly adopt the hook card issuers, with convex word card can realize accurate issue card; card machine comes with a safety lock, with the installation of electric reader, read and write operations on the card.
Despriction:
● The use of reverse hook type card hook card, can accurately issue a variety of IC card and bank (Convex) card.
● Three card box design, to achieve a multi-purpose machine.
● With safety lock card box, and recovery box Design, improve the safety of the card management.
● Issue card box can be independently removed and with a separate lock.
● Recycling box can be independently removed and with a separate lock.
● Can cooperate with high-end electric reader,read and write operations on the card.
● Multiple sets of sensors can check Storage box pre - empty, storage box-empty, storage position. and recycling box multiple sets of sensors.
● Can accurately determine the location of the card and the card status prompt function.
Technical Parameter
Name | Parameter |
Support card (optional) |
Magcard standard,physical propert,Conformity ISO7810 and 7811,ISO7811-2,ISO7811-4,ISO7811-5 and ISO7811-6 standard. Card size: ISO78101D-1 type Magcard standard Embossed convex card: ISO7811-1 and ISO7811-3 standard IC standard: ISO7816 standard, surport AT24C01,24C02,24C256,SLE4442,SLE4428,CPU T=0/T=1 |
Card Size |
L: 85.47-85.90mm W:53.92-54.18mm H:0.76mm±0.1mm |
Communication mode | RS-232 semiduplex |
Work Volage | DC24V±5% 2A |
Quiescent current | 200mA |
Quantity of storage tank | 3 piece |
Storage tank loading(unit) | ≥100 |
Recycling tank capacity | 30pcs |
Working life | (magnetic) head ≥100million times, IC contactor ≥50million times |
Magnetic stripes card repeat rate | ≤1/1000 |
Work Environment | Temperature / humidity 0℃--50℃/0-90%(No condensation) |
Storage Environment | Temperature / humidity -10℃—60℃/0—90%(No condensation) |
Application
Financial, medical, transportation, communication etc industry
