CSI adapter cable ,DB9 6pin male>>DB9 female, 5PIN Male->DB9F,8ft,

China CSI adapter cable ,DB9 6pin male>>DB9 female, 5PIN Male->DB9F,8ft, supplier
CSI adapter cable ,DB9 6pin male>>DB9 female, 5PIN Male->DB9F,8ft, supplier CSI adapter cable ,DB9 6pin male>>DB9 female, 5PIN Male->DB9F,8ft, supplier

Large Image :  CSI adapter cable ,DB9 6pin male>>DB9 female, 5PIN Male->DB9F,8ft,

Product Details:

Place of Origin: China
Brand Name: CSI
Certification: CE
Model Number: 1100,581,508, 507,507SD, 504, 503, 501,511SD

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 10*7*3(CM)/pc
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
Material: TUP/PVC - Latex - Free Function: Dressings And Care For Material
Style: Clip, Softwrap Color: Grey, White And Blue
Connector: 6pin Warranty: 12 Months

Detailed Product Description




Suitable for Alaris (IVAC):VitalCheck 4400 CSI(Criticare Systems International)
503DX,503Spot,504DX,506,506DX,507ELC2 ScholarIII,8100Poet Plus,Poet (602-3A)
(Sensor + Cable),Scholar (Sensor + Cable)



http://www.spo2-ecg.com

CSI (Criticare SystemsInternational):506 Spot
CSI,507SD(Criticare SystemsInternational):503 Spot

OEM P/N Part No. Description(Cable & Connector)

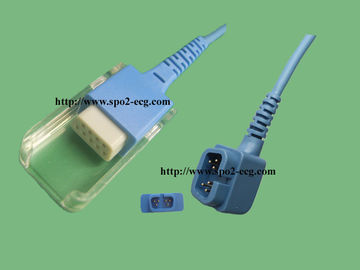

  CA0001 CSI adapter cable ,DB9 6pin male>>DB9 female,8ft
CSI adapter cable ,DB9 6pin male>>DB9 female, 5PIN Male->DB9F,8ft, CSI adapter cable ,DB9 6pin male>>DB9 female, 5PIN Male->DB9F,8ft,

CSI (Criticare SystemsInternational):Scholar , Poet (602-
3A), 1100 , 581, 508, 507,507SD,504, 503, 501;
Mindray500A

OEM P/N Part No. Description(Cable & Connector)

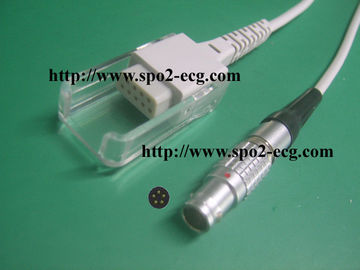

  CA0002 5PIN Male->DB9F,8ft
CSI adapter cable ,DB9 6pin male>>DB9 female, 5PIN Male->DB9F,8ft,CSI adapter cable ,DB9 6pin male>>DB9 female, 5PIN Male->DB9F,8ft, CSI adapter cable ,DB9 6pin male>>DB9 female, 5PIN Male->DB9F,8ft,

CSI : 503 SPOT,503DX,504DX,506,506DX,507ELC2

SCHOLAR III,8100 poet plus,scholar (sensor +cable)
Alaris(IVAC): vital check 4400



Cable Material: Medical-grade TPU

Storage and Transport Environment: -10°C ~ +40°C

Operating Temperature: +5°C~+40°C

All materials are touched by patients which are latex-free. We assure the best service, comfortable, wonderful and excellent products for you



TECHNICAL PARAMETERS:

LEDS Red 660nm normal
Infrared 880 / 905 / 940nm normal
Test Range Oxygen Saturation(%SpO2) 0 % to 100 %
Pulse Rate(bpm) 30 to 245
Accuracy SpO2 ± 2%(90% -1 00 %)
±3%(70%-89 %)
unspecified(0-69 %)
Pulse Rate ±1 bpm(30 - 59bpm)
±2 bpm(60 - 149bmp)
±3 bpm(150 - 245bmp)
Storage and Transport Environment - 10°C~ + 40°C
Operating Temperature + 5°C~ + 40°C
Operating/Storage/Transportation humidity 0% - 80%
Hyperbaric pressure 86kPa - 106 kPa

Products more details
1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers, the hard plastic shell for fixed sensors is larger and fits adult measurement, the instruments of different brand its probe shell may be slightly different, different shell shape cannot influence the performance of product.
2. Pediatric finger clip type spo2 sensor
Such blood oxygen probes, sensors in children's fingers acquisition signal, the hard plastic shell used in fixed sensor is smaller and measurements are suitable for children.
3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip
Such blood oxygen probe, sensor covered on adult finger to collect signals, the soft gel coat used in fixed sensors is bigger, suitable for adults. Different brands of instruments and its probe coat may be slightly different, different shape of coat cannot influence the product performance.
4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.
The type of blood oxygen sensor, the sensor wrapped in neonatal acquisition signals on his foot, fixed sensors used in soft gel coat is bind package type, suitable for newborns.



CSI adapter cable ,DB9 6pin male>>DB9 female, 5PIN Male->DB9F,8ft,



CSI adapter cable ,DB9 6pin male>>DB9 female, 5PIN Male->DB9F,8ft,CSI adapter cable ,DB9 6pin male>>DB9 female, 5PIN Male->DB9F,8ft,CSI adapter cable ,DB9 6pin male>>DB9 female, 5PIN Male->DB9F,8ft,
