|IC Standard::||ISO7816 Standard||Communication Mode:||USB(PC/SC)/ RS232 (optional)|
|Work Volage:||DC24V ± 5%, 2.5A||Quiescent Current:||200mA|
|Service Life:||≥ 1, 000, 000 Passes||Capture Box Capacity:||25 Pcs (0.76mm Standard Card)|
|Card Stacker Capacity:||155 Pcs (0.76mm Standard Card) /120 Pcs (0.76mm Embossing Card) /300 Pcs (0.4mm Thickness)||Storage Environment:||Temperature / Humidity -10℃—60℃/0—90%(No Condensation)|

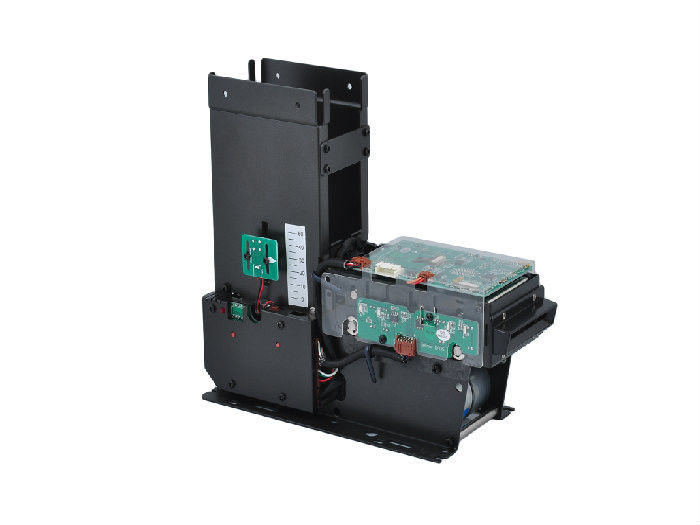

KH-F3A series card issuing machine supports IC/RF card R/W and issuing/collecting functions, which is primarily applicable to self-service terminal equipments such as parking lot management system, expressway toll gate, self-service charging system, self-service card vending terminal, bank card management system and electricity bill payment system.
|Power Supply||DC24V ± 5%, 2.5A|
|uiescent Current||< 200mA|
|Communication Method||USB(PC/SC)/ RS232 (optional)|
|Service Life(Issuing life)||≥ 1, 000, 000 passes|
|Service Life(IC contact)||≥ 500, 000 passes|
|Card Stacker Capacity||175 pcs (0.76mm standard card) /130 pcs (0.76mm embossing card) /350 pcs (0.4mm thickness)|
|Capture Box Capacity||25 pcs (0.76mm standard card)|
|Net Weight||Approx. 1.6KG (excluding accessories and package)|
|C/D Dimension||233L x 69W x 200H mm/pc|
|Carton Dimension||515L x 295W x 310 mm/CTN (4 PCS)|
|Operation Temperature/ Humidity||0°C to 50°C, 0 to 90% RH without condensation|
|Storage Temperature/ Humidity||-25°C to 80°C, 0 to 90% RH without condensation|
|Cards Supported||86L x 55W mm(0.2~1.2mm thickness; factory standard: 0.8mm)|
|Mifare Type A Operating Frequency||13.56 MHz|
|RF Communication Speed||105k bps|
Supports ISO7816-2. contact type IC card reading/writing..
Supports ISO14443-A contactless Mifare Type A/B card reading/writing.
Unique dispensing wheel design: is capable of issuing various embossing cards accurately.
Automatic internal adjustment: ensures accurate issuing cards of different thicknesses.
Multi functions in one device: provides IC/RF card reading/writing, issuing/collecting functions and
effectively saves space for the complete machine.
Rear card capture box: provides convenience for card management.
Simple collection channel design: satisfies user requirement for large collection amount.
Multiple sensors: are able to judge the card position and indicate the card status.
Scientific card transfer wheel design: automatically avoids dust accumulation which will lead to slippage.
High-strength wearable plastic channel: is adopted to reduce the risk of metal shielding and increase the
success rate of RF card reading/writing.
Multiple levels of sensor circuit protection: prevents optical interference.
PCSC protocol: is available.
*Barcode scanning module
Information kisok , Transportation system ,Telecommunication system ,Paper ticket issuing ,Gas station ,Toll gate ,Parking system
