Quiescent Current: | < 200mA | Communication Method: | USB(PC/SC)/ RS232 (optional) |
---|---|---|---|
Service Life(Issuing Life): | ≥ 1, 000, 000 Passes | Service Life(IC Contact): | ≥ 500, 000 Passes |
Card Stacker Capacity: | 175 Pcs (0.76mm Standard Card) /130 Pcs (0.76mm Embossing Card) /350 Pcs (0.4mm Thickness) | Capture Box Capacity: | 25 Pcs (0.76mm Standard Card) |
Operation Temperature/ Humidity: | 0°C To 50°C, 0 To 90% RH Without Condensation | Storage Temperature/ Humidity: | -25°C To 80°C, 0 To 90% RH Without Condensation |
High Light: | gift card dispenser,sim card dispenser |
Product Specifications

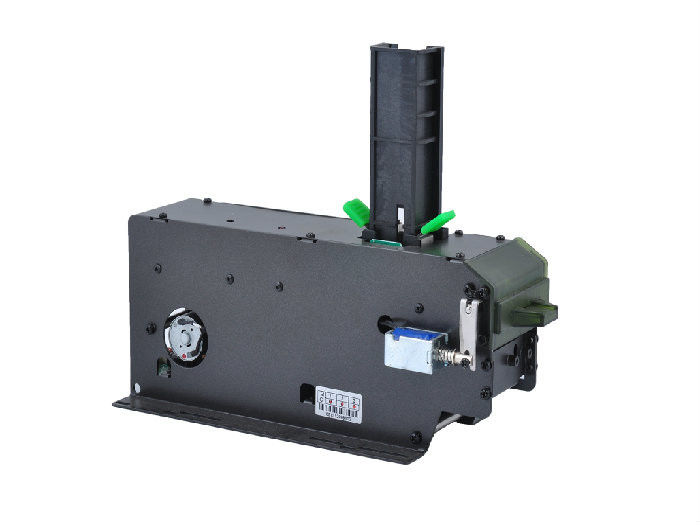

KH-F3B series card issuing machine supports IC/RF card R/W and issuing/collecting functions, which is primarily applicable to self-service terminal equipments such as parking lot management system, expressway toll gate, self-service charging system, self-service card vending terminal, bank card management system and electricity bill payment system.
Automatic Card Issuing Machine Features:
--Reserve barcode reader, RFID reader/writer install position
--Unique transfer wheel design for Accurate issuing any card even for concavo-convex character number card
--Simple, convenient, stable and accurate adjusting kinds of different thickness for issuing different cards
--Compact size design to save the installation space
--Reclaim card tank design in rear of machine for easy management
--Couple of sensor can detect reclaim card tank is full, card tank empty alarm, card position detect etc, can easy distinguish card position and status.
--High strength and durable engineer plastic card channel make sure RF card read/write steady
--Industry conceiving, surface dealing with roast paint, well bearable cubing and rotting. Be suitable to all kinds of bad environment, such as high, low, and mush dust, etc.
--Multi- sensor protect function prevent outer light interference to sensor
Technical Specifications
Power Supply | DC24V ± 5%, 2.5A |
Quiescent Current | < 200mA |
Communication Method | USB(PC/SC)/ RS232 (optional) |
Service Life(Issuing life) | ≥ 1, 000, 000 times |
Service Life(Magnetic head) | ≥ 500, 000 times |
Card Stacker Capacity | 175 pcs (0.76mm standard card) /130 pcs (0.76mm embossing card) /350 pcs (0.4mm thickness) |
Capture Box Capacity | 25 pcs (0.76mm standard card) |
Net Weight | 1.6KG (excluding accessories and package) |
C/D Dimension | 233L x 69W x 200H mm/pc |
Carton Dimension | 515L x 295W x 310 mm/CTN (4 |
Operation Temperature/ Humidity | 0°C to 50°C, 0 to 90% RH without condensation |
Storage Temperature/ Humidity | -20°C to 70°C, 0 to 90% RH without condensation |
Cards Supported | 86L x 55W mm(0.2~1.2mm thickness; factory standard: 0.8mm) |
Mifare Type A Operating Frequency | 13.56 MHz |
RF Communication Speed | 105k bps |
Product Descriptions
* Supports ISO7816-2. contact type IC card reading/writing..
* Supports ISO14443-A contactless Mifare Type A/B card reading/writing.
* Unique dispensing wheel design: is capable of issuing various embossing cards accurately.
* Automatic internal adjustment: ensures accurate issuing cards of different thicknesses.
* Multi functions in one device: provides IC/RF card reading/writing, issuing/collecting functions and effectively saves space for the complete machine.
* Rear card capture box: provides convenience for card management.
* Simple collection channel design: satisfies user requirement for large collection amount.
* Multiple sensors: are able to judge the card position and indicate the card status.
* Scientific card transfer wheel design: automatically avoids dust accumulation which will lead to slippage.
* High-strength wearable plastic channel: is adopted to reduce the risk of metal shielding and increase the success rate of RF card reading/writing.
* Multiple levels of sensor circuit protection: prevents optical interference.
* PCSC protocol: is available.
Optional Accessories
* Stacker
* Barcode scanning module
Application:
Information kisok , Transportation system ,Telecommunication system ,Paper ticket issuing ,Gas station ,Toll gate ,Parking system
