|Quiescent Current:||< 200mA||Communication Mode:||USB(PC/SC)/ RS232 (optional)|
|Work Volage:||DC24V ± 5%, 3A||Quiescent Current:||200mA|
|Service Life:||≥ 1, 000, 000 Passes||Service Life(Magnetic Head):||≥ 500, 000 Times|
|Card Stacker Capacity:||155 Pcs (0.76mm Standard Card) /120 Pcs (0.76mm Embossing Card) /300 Pcs (0.4mm Thickness)||Storage Environment:||Temperature / Humidity -10℃—60℃/0—90%(No Condensation)|

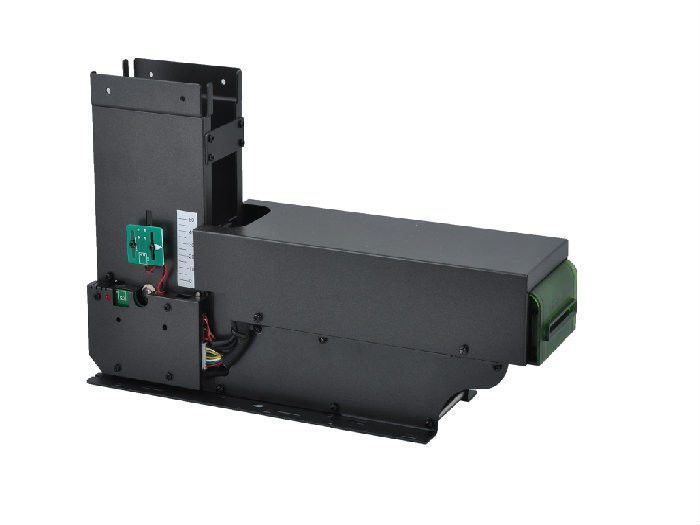

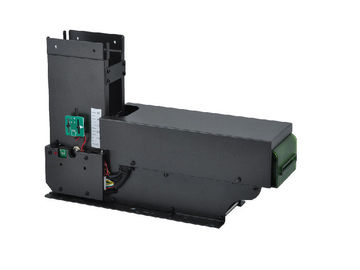

KH-F6A series card issuing machine is a 3-in-1 card issuing and reading/writing device, which supports ISO14443 RF card and ISO7816 IC card R/W as well as ISO 7810/7811 magnetic card R. Therefore, it is widely used for the self-service terminals for membership card issuing and card issuing in electronic medical sector, transportation sector and that for account opening in banks.
|Power Supply||DC24V ± 5%, 3A|
|Quiescent Current||< 200mA|
|Service Life(Issuing life)||≥ 1, 000, 000 times|
|Service Life(Magnetic head)||≥ 500, 000 times|
|Service LifeI(C contact)||≥ 500, 000 times|
|Card Stacker Capacity||150 pcs (0.76mm standard card) /120 pcs (0.76mm embossing card) /300 pcs (0.4mm thickness)|
|Capture Box Capacity||25 pcs (0.76mm standard card) (Collection channels can be customized to collect unlimited cards.)|
|Net Weight||Approx. 2.8KG (excluding accessories and package)|
|C/D Dimension||326L x 103W x 220H mm (without shutter) 347L x 100W x 200H mm (with shutter)|
|Operation Temperature/ Humidity||0°C to 50°C, 0 to 90% RH without condensation|
|Storage Temperature/ Humidity||-20°C to 70°C, 0 to 90% RH without condensation|
|Cards Supported||86L x 55W mm (0.2~1.2mm thickness; factory standard: 0.8mm)|
|Magnetic Recording Capacity||Track 1 (IATA): Max. of 79 characters (6 bits + 1 parity)|
|Track 2 (ABA)||Max. of 40 characters (4 bits + 1 parity)|
|Track 3 (MINTS)||Max. of 107 characters (4 bits + 1 parity)|
|Magnetic Coercivity||24k~320k A/m (300~4000 Oe)+/-10%|
|Mifare Type A Operating Frequency||13.56 MHz|
|RF Communication Speed||105k bps|
*Supports ISO7810/7811 magnetic card reading only.
*Supports ISO7816-2 contact IC card reading/writing.
*Supports ISO14443-A Mifare Type A/B card reading/writing.
*Unique dispensing wheel design: is capable of issuing various embossing cards accurately.
*Convenient and simple card adjustment design: is stable and accurate to dispense cards with various thicknesses.
*Compact structure design: effectively saves space for the complete machine.
*Rear card capture box: provides convenience for card management.
*Simple collection channel design: satisfies user requirement for large collection amount.
*Multiple sensors: are able to judge the card position and indicate the card status.
*Protruding bezel: for anti-theft is available
*Bezel with LED light: provides card insertion indication and/or lighting and prevents the card being left inside.
*Supports multiple communications (max. 16 C/Ds).
*Supports online upgrade program.
Information kisok , Transportation system ,Telecommunication system ,Paper ticket issuing ,Gas station ,Toll gate ,Parking system
