High Performance Automatic Card Dispenser Machine DC24V 100mA With RF Module

I'm Online Chat Now

High Performance Automatic Card Dispenser Machine DC24V 100mA With RF Module

China High Performance Automatic Card Dispenser Machine DC24V 100mA With RF Module supplier

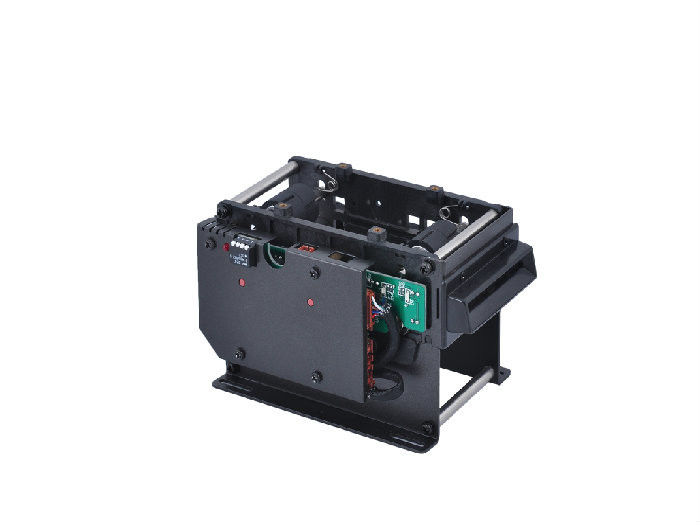

Large Image :  High Performance Automatic Card Dispenser Machine DC24V 100mA With RF Module

Product Details:

Place of Origin: China
Brand Name: Card Collecting Machine
Certification: CE
Model Number: mainly used in finance, communications, and medical industry

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: orginal package
Delivery Time: 3-10 work days after receiving
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
Quiescent Current: 100mA Communication Mode: RS232/TTL (optional)
Work Volage: DC24V ± 5%,< 1.5A Carton Dimension: 515L X 295W X 310 Mm/CTN (8 PCS)
Service Life: ≥ 1, 000, 000 Passes Cards Supported: 86L X 55W Mm(0.2~1.2mm Thickness)
Humidity: -10°C To 70°C, 0 To 90% RH Without Condensation Storage Environment: Temperature / Humidity -10℃—60℃/0—90%(No Condensation)

Card Collecting Machine

Product Specifications



KH-F2A series card collecting machine reserves installation space for antenna board of RF card reader, which is capable of extending RF card reading function. Fine wearable and anti-corrosive rubber material and metal support are adopted, which can effectively prevent RF module from being interfered by metals. The product is extensively used in parking lot systems and sight spots, etc.



Feature



--Simple, convenient, stable and accurate adjusting kinds of different thickness for issuing different cards


--Compact size design to save the installation space


--Reclaim card tank design in rear of machine for easy management


--Couple of sensor can detect reclaim card tank is full, card tank empty alarm, card position detect etc, can easy distinguish card position and status.


--High strength and durable engineer plastic card channel make sure RF card read/write steady



Technical Specifications



Power Supply DC24V ± 5%,< 1.5A
Quiescent Current 100mA
Communication Method RS232/TTL (optional)
Service Life ≥ 1,000,000 passes
Net Weight Approx.600g (excluding accessories and package)
C/D Dimension 126.7L x 93.8W x 82.3H mm/pc
Carton Dimension 515L x 295W x 310 mm/CTN (8 PCS)
Humidity -10°C to 70°C, 0 to 90% RH without condensation
Storage Temperature/ Humidity -25°C to 80°C, 0 to 90% RH without condensation
Cards Supported 86L x 55W mm(0.2~1.2mm thickness)



Product Descriptions


* Unique dispensing wheel design: effectively prevents from dust accumulation and it’s capable of self-cleaning.
* Extension-hole positions: are reserved for installation of RF module and scanning module.
* Wearable and anti-corrosive rubber material and metal support: are adopted, which can effectively prevent RF module from being interfered by metals.
* Multiple levels of sensor circuit protection: prevents optical interference.
* Supports online upgrade program.


Optional Accessories


* RF module.
* Barcode scanning module.



Application:



Information kisok , Transportation system ,Telecommunication system ,Paper ticket issuing ,Gas station ,Toll gate ,Parking system
