Payment & Shipping Terms:
|Quiescent Current:||100mA||Communication Mode:||RS-232 (half-duplex)|
|Work Volage:||DC24V±5%, 5A||Carton Dimension:||579L X 310W X 210 Mm/pc/CTN|
|Service Life:||Issuing Life ≥ 1, 000, 000 Times||C/D Dimension:||472.3L X 124.5W X 244.3H Mm (without Reader)|
|Operation Temperature/ Humidity:||0°C To 50°C, 0 To 90% RH Without Condensation||Storage Temperature/ Humidity:||-20°C To 70°C, 0 To 90% RH Without Condensation|

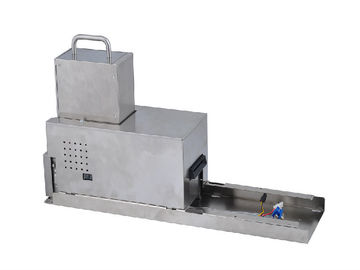

KH-F5A series secure card dispenser is mainly used for self-service card opening of the financial and medical industries, etc. KH-F5A 's dispensing mode is mainly based on hooking, which can issue embossing cards accurately; both moveable card stacker and collecting box are provided with a security lock, which is convenient for the transportation and management of cards; at the same time, it can also be equipped with a motorized reader/writer to read/write cards.
|Power Supply||DC24V±5%, 5A|
|Communication Method||RS-232 (half-duplex)|
|Service Life(Issuing life)||Issuing life ≥ 1, 000, 000 times|
|Card Stacker Capacity||150 pcs (0.76mm standard card) 100 pcs (0.76mm embossing card)|
|Capture Box Capacity||20 pcs (0.76mm standard card)|
|Net Weight||Approx. 4.7KG (without the reader)|
|C/D Dimension||472.3L x 124.5W x 244.3H mm (without reader)|
|Carton Dimension||579L x 310W x 210 mm/pc/CTN|
|Operation Temperature/ Humidity||0°C to 50°C, 0 to 90% RH without condensation|
|Storage Temperature/ Humidity||-20°C to 70°C, 0 to 90% RH without condensation|
|Cards Supported||86L x 55W mm (0.76mm standard card)|
* Card-Issuing by hooking: effectively ensures the accuracy of issuing embossing cards and reduces the friction with the cards.
* Removable capture box and stacker with security locks: enable the security management of cards.
* Extension RF reader/writer: is available so as to read/write RF cards directly.
* Various high-end reader/writers as required by clients: can be used together with to operate cards read/write.
* Convenient, simple and stable, with low noise and fast speed.
* Multiple sensors: are able to detect the card position, capture box status and stacker status.
* Accurately determines the card stop position and indicates the card status.
* Supports online upgrade program.
Information kisok , Transportation system ,Telecommunication system ,Paper ticket issuing ,Gas station ,Toll gate ,Parking system
