Small Portable Card Dispenser Machine 4pcs Capacity With RS232 Interface

I'm Online Chat Now

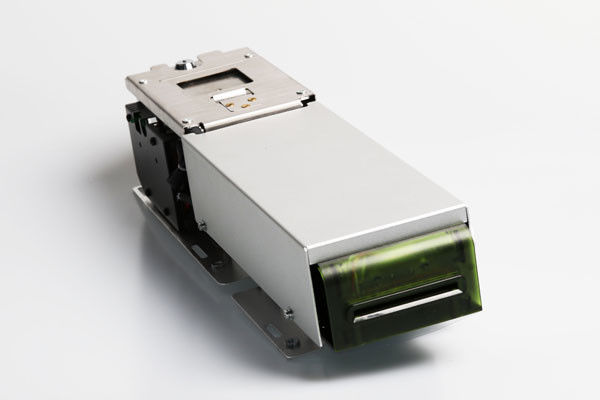

Small Portable Card Dispenser Machine 4pcs Capacity With RS232 Interface

China Small Portable Card Dispenser Machine 4pcs Capacity With RS232 Interface supplier

Large Image :  Small Portable Card Dispenser Machine 4pcs Capacity With RS232 Interface

Product Details:

Place of Origin: China
Brand Name: Portable Card Dispenser
Certification: CE
Model Number: meidcal ATM/Cash Dispenser, Information & Payment KIOSK, Vending Machine, Various Kiosks

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: orginal package
Delivery Time: 3-10 work days after receiving
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
Application Card: Conformity 7810/7811/7816/IOS14443 Standard Card Communication Mode: RS232 Interface
Working Voltage: DC12V±5% 2.5A Quiescent Current: 100mA
Card Box Standard Loading: 0.76mm Thick, 0.76mm Thick, Common Card 30PCS/ Braille Card 20pcs Recycling Tank Capacity: Standard Card 4pcs
Work Environment: Temperature / Humidity 0℃--50℃/0-90%(No Condensation) Storage Environment: Temperature / Humidity -10℃—60℃/0—90%(No Condensation)

Portable Card Dispenser

Product Specifications/Features

KH-F6A series card issuing machine is a 3-in-1 card issuing and reading/writing device, which supports ISO14443 RF card and ISO7816 IC card R/W as well as ISO 7810/7811 magnetic card R. Therefore, it is widely used for the self-service terminals for membership card issuing and card issuing in electronic medical sector, transportation sector and that for account opening in banks.


Technical Specifications
*Power Supply: DC24V ± 5%, 3A
*Quiescent Current: < 200mA
*Communication Method: RS232
*Service Life(Issuing life): ≥ 1, 000, 000 times
*Service Life(Magnetic head): ≥ 500, 000 times
*Service LifeI(C contact): ≥ 500, 000 times
*Card Stacker Capacity: 150 pcs (0.76mm standard card) /120 pcs (0.76mm embossing card) /300 pcs (0.4mm thickness)
*Capture Box Capacity: 25 pcs (0.76mm standard card)
(Collection channels can be customized to collect unlimited cards.)
*Net Weight: Approx. 2.8KG (excluding accessories and package)
*C/D Dimension: 326L x 103W x 220H mm (without shutter)
347L x 100W x 200H mm (with shutter)
*Operation Temperature/ Humidity: 0°C to 50°C, 0 to 90% RH without condensation
*Storage Temperature/ Humidity: -20°C to 70°C, 0 to 90% RH without condensation
*Cards Supported:86L x 55W mm
(0.2~1.2mm thickness; factory standard: 0.8mm)
*Magnetic Recording Capacity: Track 1 (IATA): Max. of 79 characters (6 bits + 1 parity)
Track 2 (ABA): Max. of 40 characters (4 bits + 1 parity)
Track 3 (MINTS): Max. of 107 characters (4 bits + 1 parity)
*Magnetic Coercivity:24k~320k A/m (300~4000 Oe)+/-10%
*Mifare Type A Operating Frequency:13.56 MHz
*RF Communication Speed:105k bps



Name Parameter
Application card Conformity 7810/7811/7816/IOS14443 standard card
Communication Mode RS232 interface
working voltage DC12V±5% 2.5A
Quiescent current 100mA
Card box standard loading 0.76mm thick, 0.76mm thick, common card 30PCS/ Braille card 20pcs
Recycling tank capacity Standard card 4pcs
Working life (magnetic) head 100million times, IC contactor ≥50million times
Work Environment Temperature / humidity 0℃--50℃/0-90%(No condensation)
Storage Environment Temperature / humidity -10℃—60℃/0—90%(No condensation)
N.T 1.48Kg

Product Descriptions
*Supports ISO7810/7811 magnetic card reading only.
*Supports ISO7816-2 contact IC card reading/writing.
*Supports ISO14443-A Mifare Type A/B card reading/writing.
*Unique dispensing wheel design: is capable of issuing various embossing cards accurately.
*Convenient and simple card adjustment design: is stable and accurate to dispense cards with various thicknesses.
*Compact structure design: effectively saves space for the complete machine.
*Rear card capture box: provides convenience for card management.
*Simple collection channel design: satisfies user requirement for large collection amount.
*Multiple sensors: are able to judge the card position and indicate the card status.
*Protruding bezel: for anti-theft is available
*Bezel with LED light: provides card insertion indication and/or lighting and prevents the card being left inside.
*Supports multiple communications (max. 16 C/Ds).
*Supports online upgrade program.



Application:

Information kisok , Transportation system ,Telecommunication system ,Paper ticket issuing ,Gas station ,Toll gate ,Parking system
